Product Model

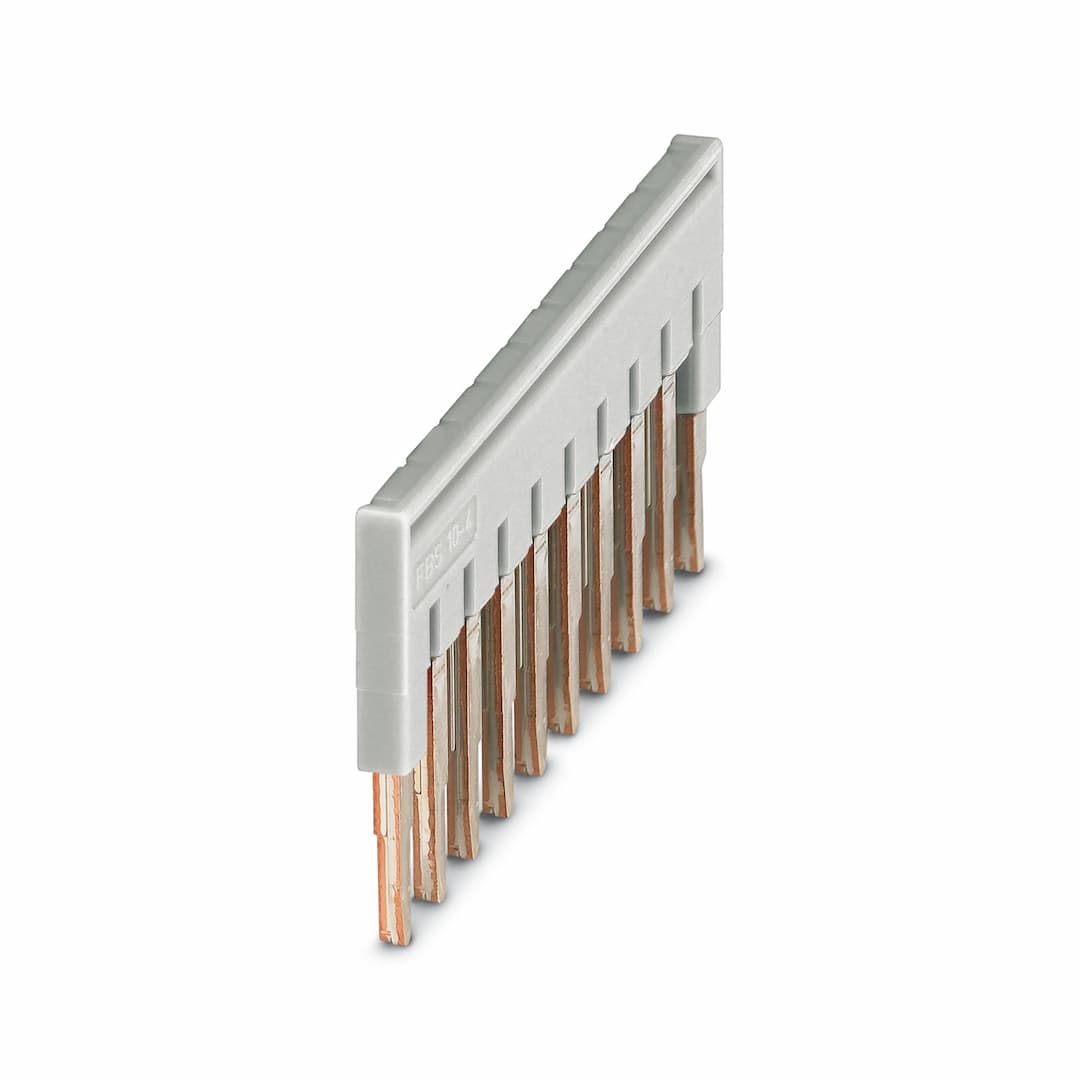

FBS 10-4 GY
Selling Points
- 1Simple push-in design saves time and effort.
- 2Supports up to 17.5A, ideal for demanding applications.
- 3Made in Germany with high-quality materials.
- 4Plug-in mount ensures quick and secure installation.
- 5Compatible with DIN rail terminal blocks, enhancing system reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 10 |
Pitch | 4.2 mm | Article revision | 03 |
Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 4.2 mm | Color | gray (RAL 7042) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
