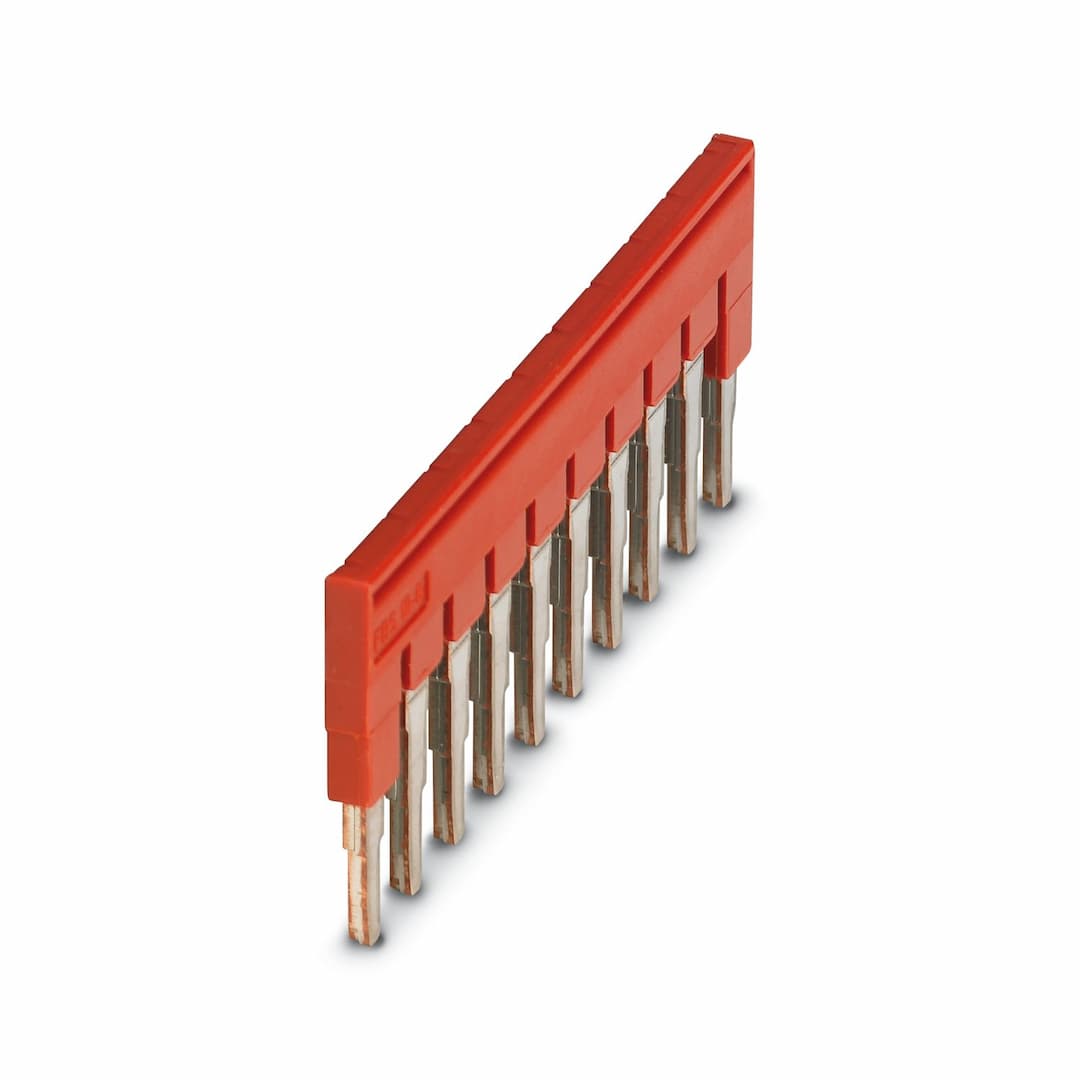

Product Model
FBS 10-6
Selling Points
- 1High-Quality Construction: Made from durable copper, ensuring long-lasting performance.
- 210-Position Design: Perfect for connecting multiple terminal blocks in one step.
- 3Red Color for Easy Identification: Clearly visible in any industrial setting.
- 432A Maximum Load Current: Handles high electrical currents with ease.
- 5Compliant with EU RoHS and China RoHS: Environmentally friendly and compliant with regulatory standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 10 |
Pitch | 6.2 mm | Article revision | 07 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 60.3 mm | Height | 23 mm |
Depth | 23 mm | Pitch | 6.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
