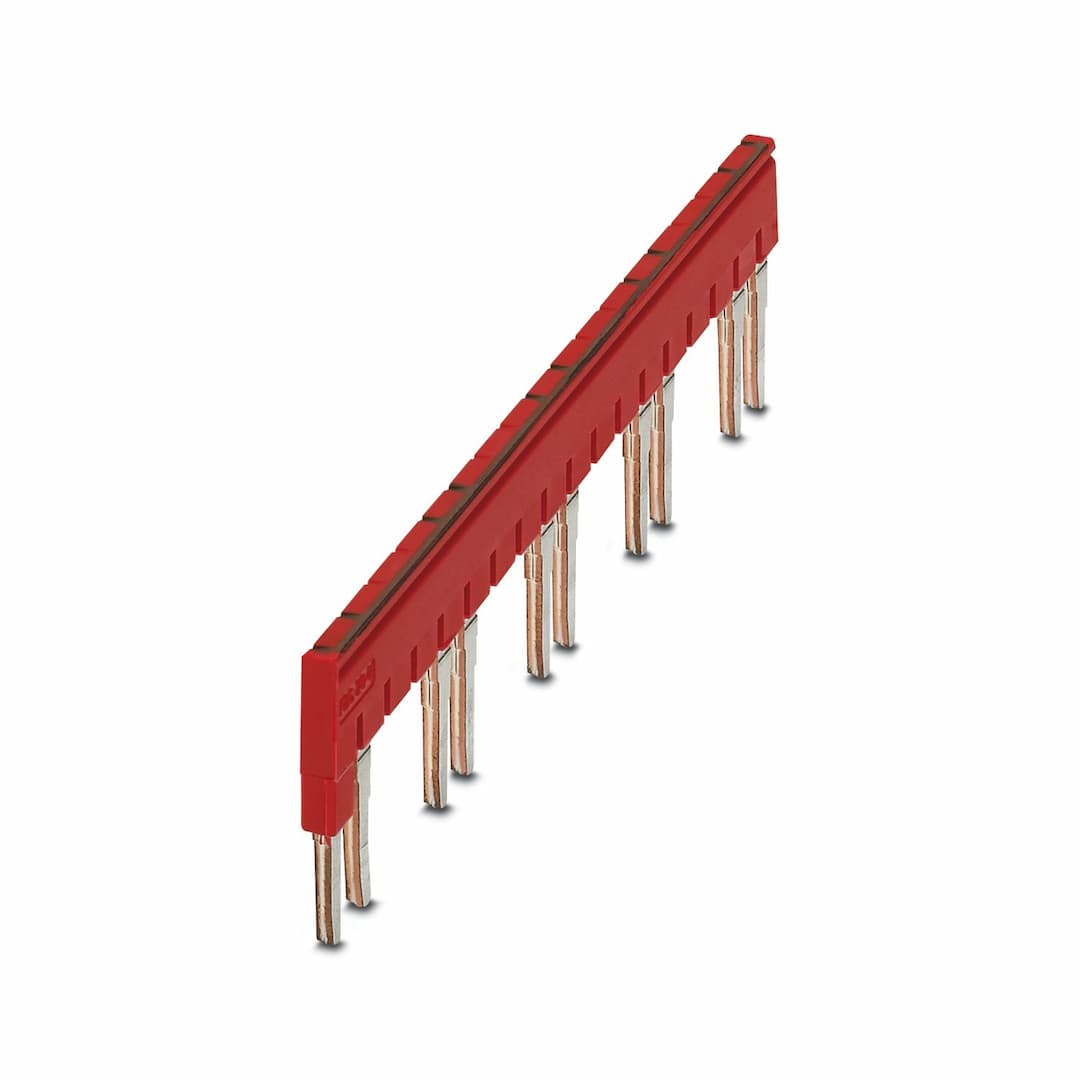

Product Model
FBS 1/2/5/6/9/10/13/14/17/18-6
Selling Points
- 1High-Current Capability: Handles up to 32 A of maximum load current.
- 2Versatile Design: Available in various positions (10, 5, 20) and pitches (6.2 mm, 5.2 mm).
- 3Industrial Grade: Built with copper material and UL 94 V0 flammability rating for reliability.
- 4Wide Operating Range: Operates from -60 °C to 110 °C and suitable for various ambient conditions.
- 5Easy Installation: Plug-in design makes it simple to integrate into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Version with single- or double-sided cutting edge. Please keep in mind the possible impact on touch protection | Product type | Jumper |
Number of positions | 18 | Pitch | 6.2 mm |
Article revision | 03 | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Width | 110.1 mm |
Height | 23 mm | Depth | 23 mm |
Pitch | 6.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Pin assignment | 1, 2, 5, 6, 9, 10, 13, 14, 17, 18 |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
