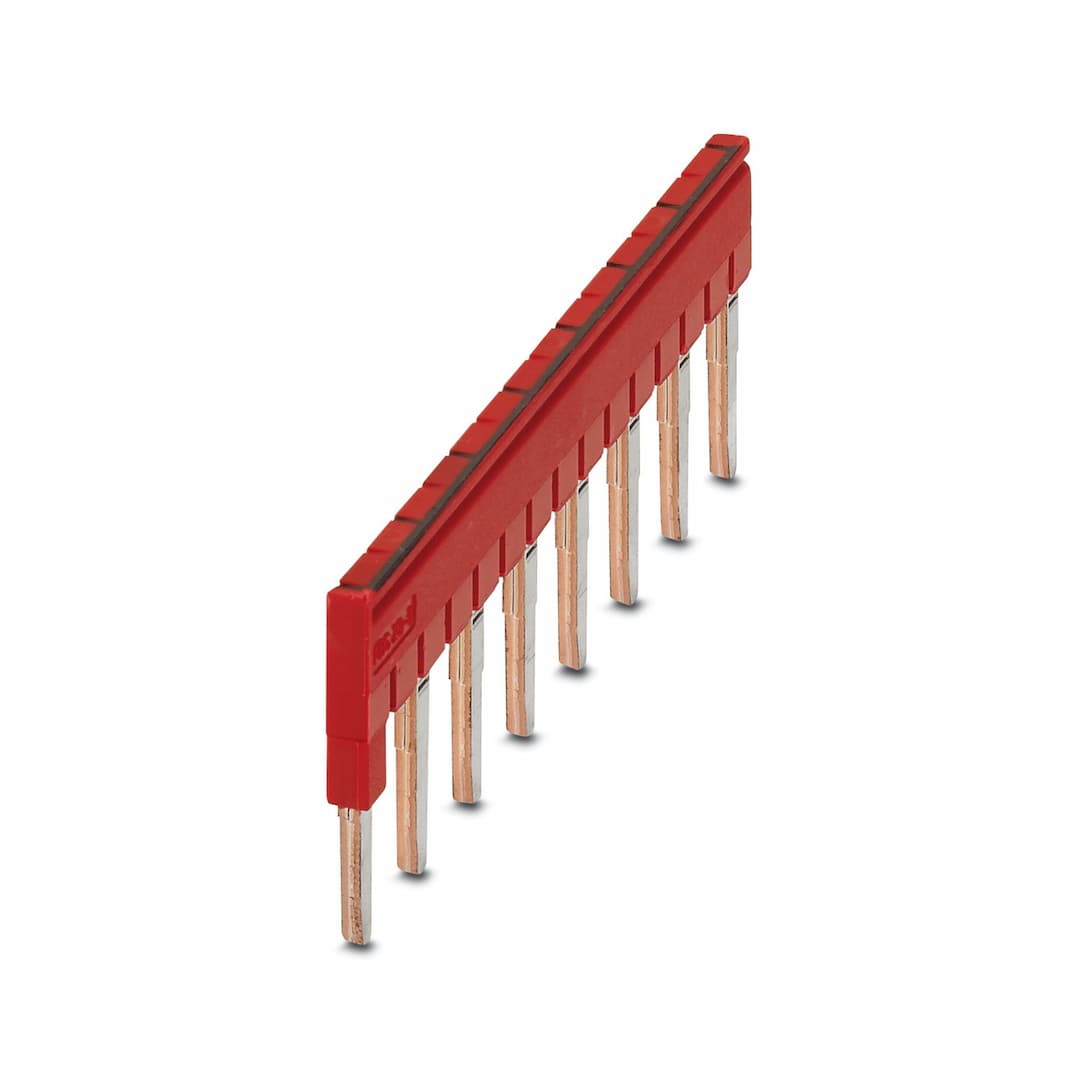

Product Model
FBS 1/3/5/7/9/11/13/15-5
Selling Points
- 1Supports up to 24 A, ensuring reliable performance in demanding industrial environments.
- 2Built with high-quality copper for excellent conductivity and longevity.
- 3Compatible with various modular terminal blocks, providing flexible connection options.
- 4Compact size (pitch: 5.2 mm) for easy integration into complex systems.
- 5Compliant with China RoHS regulations, ensuring environmentally friendly use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Version with single- or double-sided cutting edge. Please keep in mind the possible impact on touch protection | Product type | Jumper |
Number of positions | 15 | Pitch | 5.2 mm |
Article revision | 02 | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Pitch | 5.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Pin assignment | 1, 3, 5, 7, 9, 11, 13, 15 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
