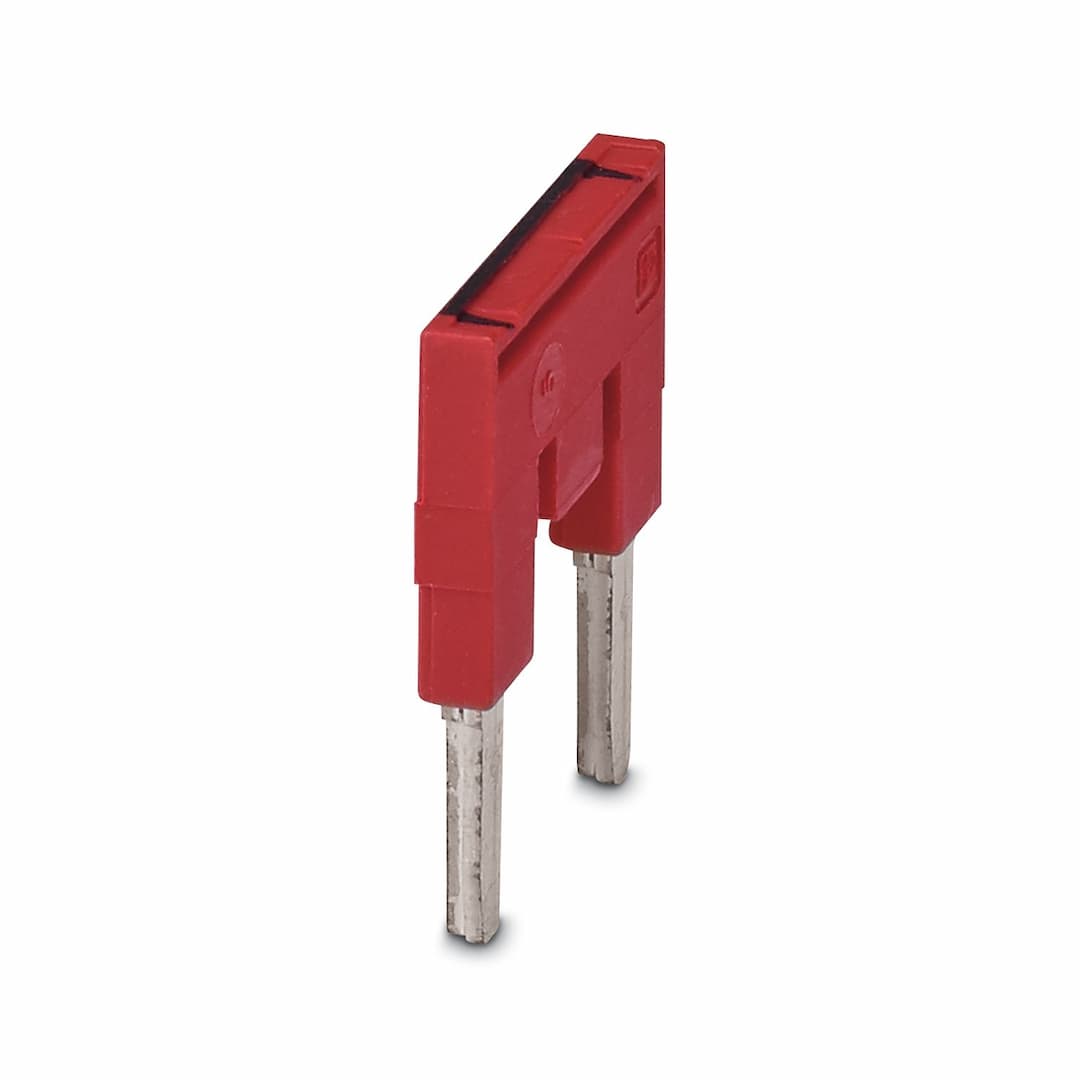

Product Model
FBS 1/3-6
Selling Points
- 1High-Quality Connectivity Solution - Designed for reliable and efficient connections in industrial settings.
- 23 Positions & 6.2 mm Pitch - Compact design with precise pin spacing for seamless integration.
- 332 A Maximum Load Current - Supports high-power applications with robust performance.
- 4EAC Approval & Compliance - Meets stringent regulatory standards for safety and reliability.
- 518-Month Warranty & Red Color - Durable construction with an attractive red color and comprehensive warranty coverage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 3 |
Pitch | 6.2 mm | Article revision | 02 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 16.9 mm | Height | 23 mm |
Depth | 23 mm | Pitch | 6.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Pin assignment | 1, 3 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
