Product Model

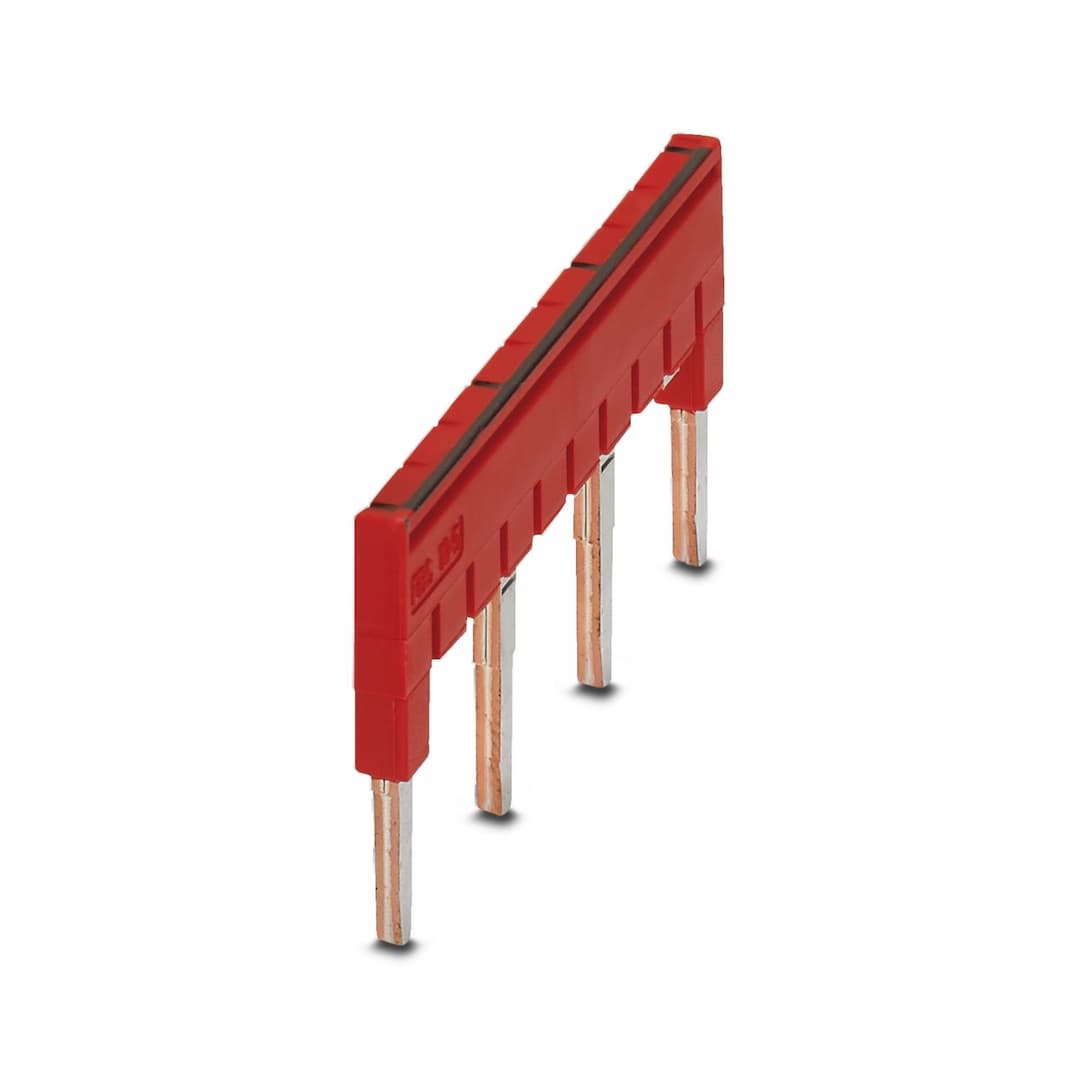

FBS 1/4/7/10-5
Selling Points
- 1High-Quality Copper Construction: Durable and reliable, made from high-quality copper.
- 210 Positions with Specific Pin Assignment: Features 10 positions with specific pin assignment (1, 4, 7, 10).
- 3Red Color for Easy Identification: Red color ensures easy identification in complex wiring systems.
- 4UL 94 V0 Flammability Rating: Meets stringent safety standards with a UL 94 V0 flammability rating.
- 5Versatile for Industrial Applications: Suitable for various industrial applications requiring precise jumper connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 10 |
Pitch | 5.2 mm | Article revision | 02 |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 5.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Pin assignment | 1, 4, 7, 10 |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
