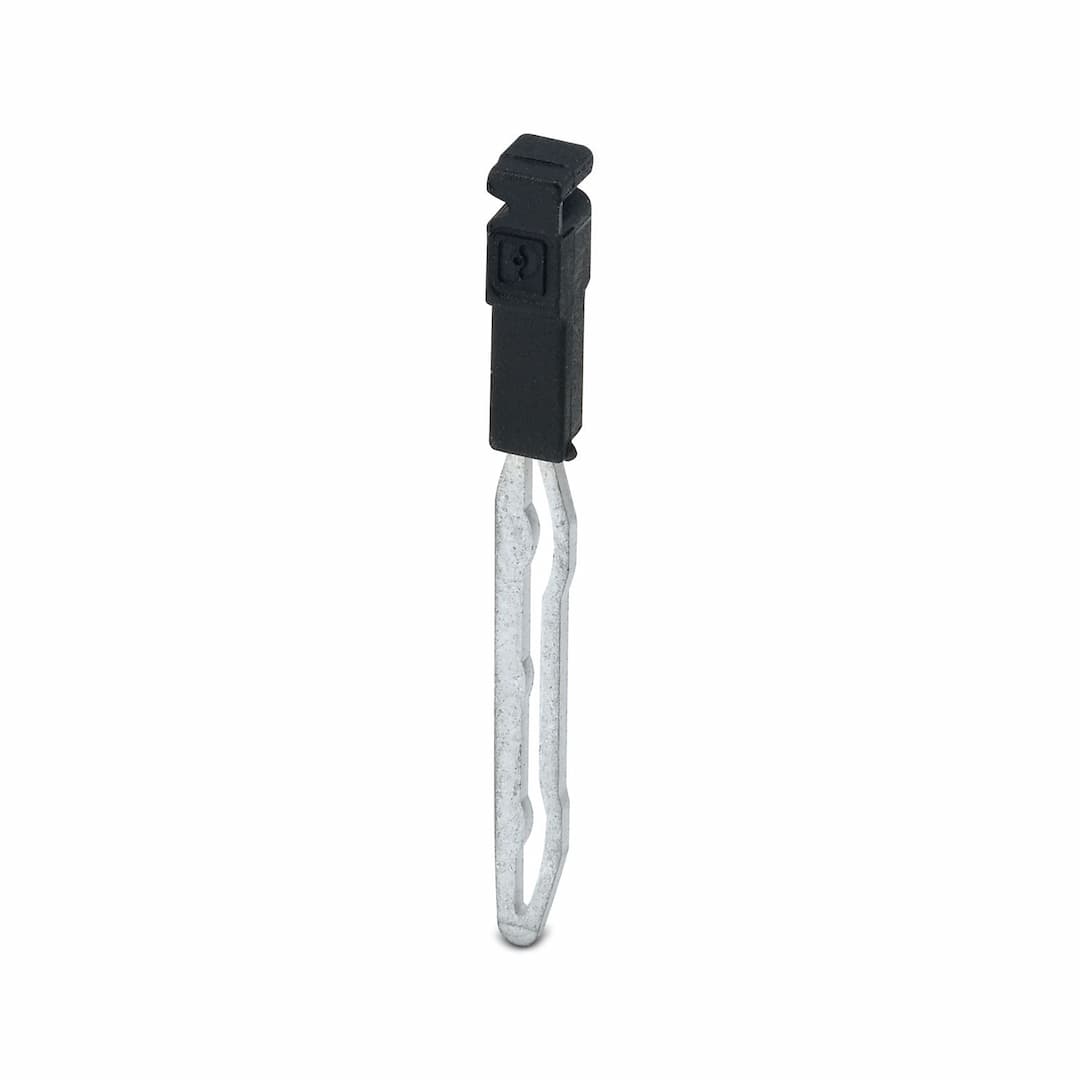

FBS 1,5/S-PV Vertical Potential Bridge by Phoenix Contact

Selling Points

1Connects Upper and Lower Levels: The FBS 1,5/S-PV is designed to bridge the gap between different levels in industrial settings.
2Durable Construction: Built with high-quality materials for long-lasting performance and reliability.
3Easy Installation: Simple and straightforward installation process, minimizing downtime and effort.
4Ideal for Industrial Use: Perfect for various industrial applications where electrical connections need to be made between different levels.
5Versatile Connectivity Options: Offers flexible connectivity solutions to meet diverse electrical needs in industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Vertical bridge	Number of positions	1
Article revision	00	Maximum load current	16 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Maximum load current	16 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)	Width	3.5 mm
Height	3 mm	Depth	33.7 mm
Length	3 mm	Color	black (RAL 9005)
Material	Copper	Insulating material	PA
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)	Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)	-5 °C ... 70 °C	Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %	Permissible humidity (storage/transport)	30 % ... 70 %
Mounting type	Plug-in mounting

Specifications may be subject to change without notice
