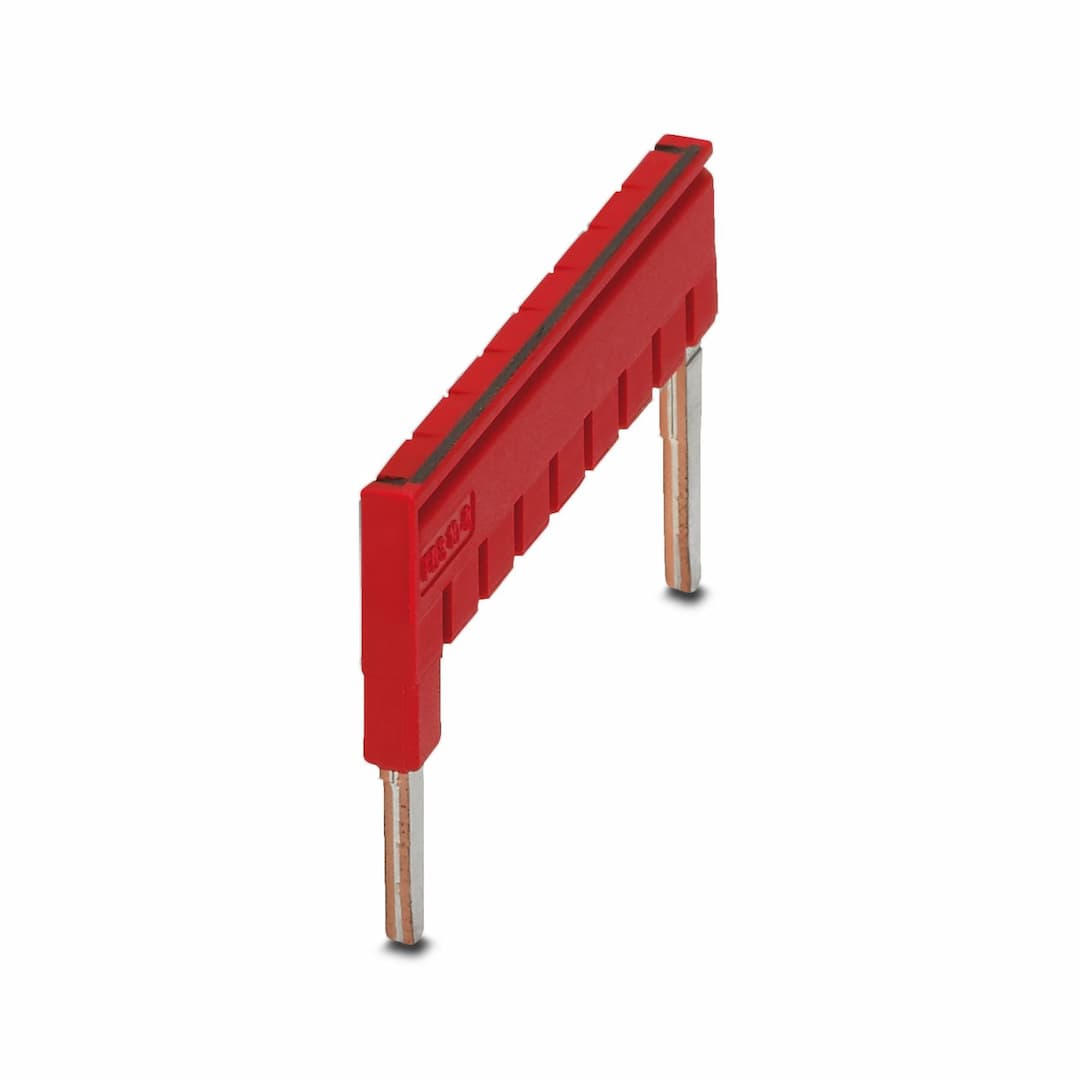

Product Model
FBS 1/9-5
Selling Points
- 1The FBS 1/9-5 features a compact design with a 5.2 mm pitch, making it perfect for tight spaces.
- 2With 9 positions, this plug-in bridge offers a high pin count for complex electronic connections.
- 3The red color coding ensures easy identification and organization of your wiring.
- 4Suitable for bridging connections in various electronic systems, including industrial and commercial applications.
- 5Note that this product is discontinued and will no longer be available after February 28, 2025.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Version with single- or double-sided cutting edge. Please keep in mind the possible impact on touch protection | Product type | Jumper |
Number of positions | 9 | Pitch | 5.2 mm |
Article revision | 02 | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Pitch | 5.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Pin assignment | 1, 9 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
