Product Model

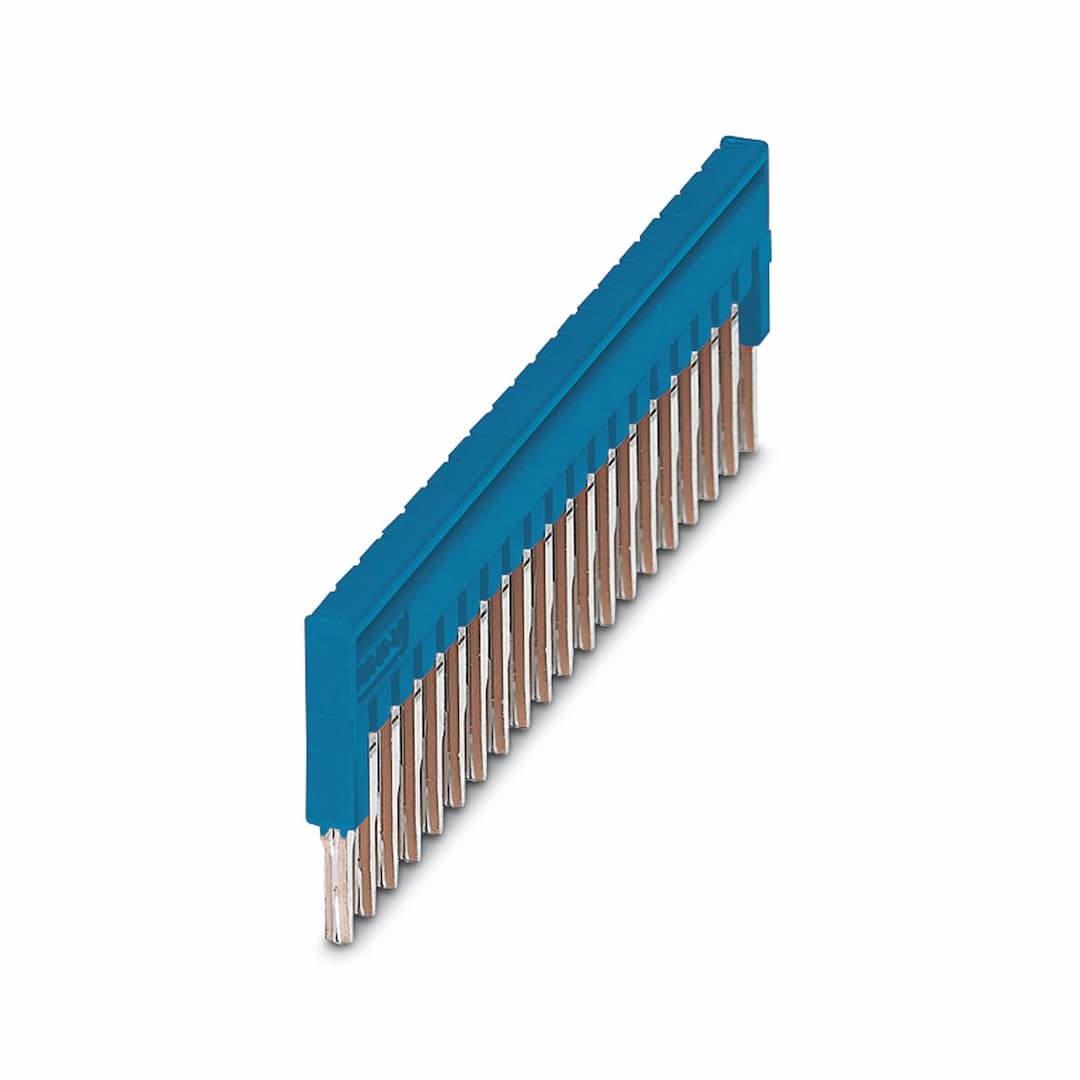

FBS 20-3,5 BU
Selling Points
- 1High-Quality Construction: Durable and reliable for long-lasting performance in industrial environments.
- 220 Positions: Offers ample space for multiple connections, enhancing system flexibility.
- 33.5 mm Pitch: Standardized pitch ensures compatibility with various modular terminal blocks.
- 4Blue Color: Easy identification in complex setups, reducing installation errors.
- 5Precise Load Current: Supports up to 17.5 A, ensuring robust current handling capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 20 |
Pitch | 3.5 mm | Article revision | 03 |
Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 3.5 mm | Color | blue (RAL 5015) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
