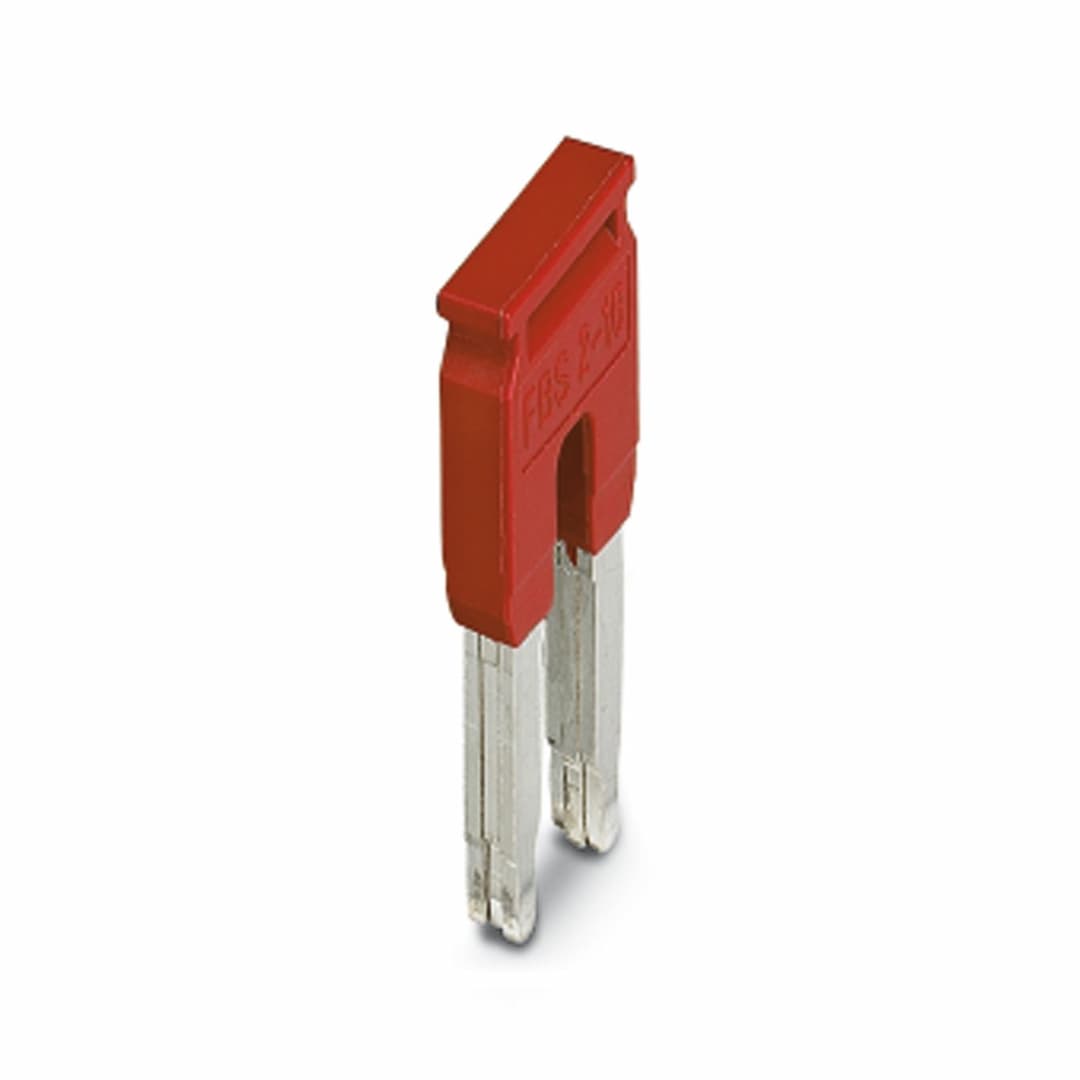

Product Model
FBS 2-16
Selling Points
- 1Made from high-quality copper for reliable performance.
- 2Length: 43.7 mm, Width: 25.9 mm, ideal for space-constrained applications.
- 3Easy identification and organization in electrical systems.
- 4Meets EU regulations for restricted substances, ensuring environmental compliance.
- 5Suitable for connecting Phoenix Contact CLIPLINE terminal blocks in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 16 mm | Article revision | 06 |
Maximum load current | 101 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 101 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 25.9 mm | Height | 43.7 mm |
Depth | 6 mm | Length | 43.7 mm |
Pitch | 16 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
