Product Model

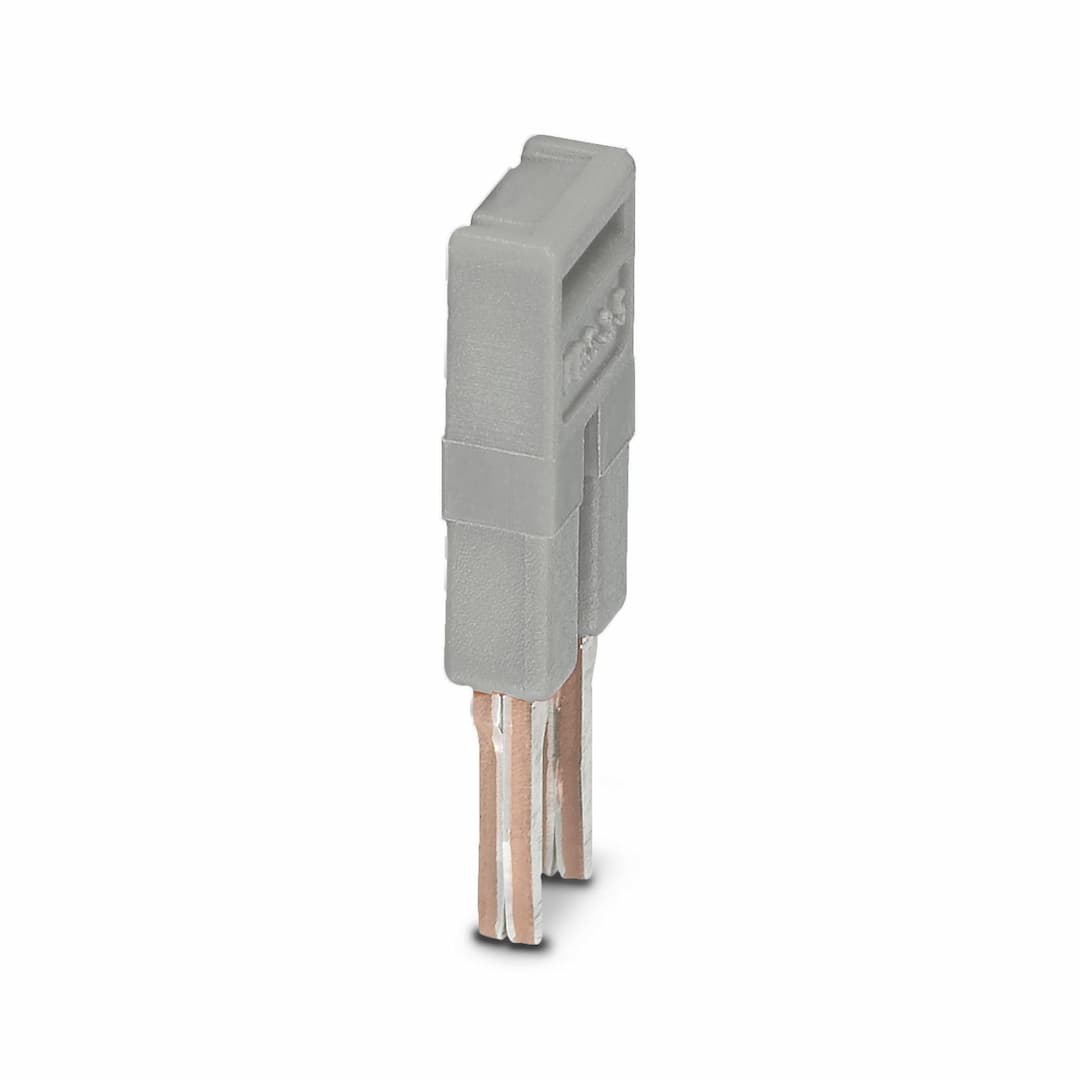

FBS 2-3,5 GY
Selling Points
- 1High-Quality Electrical Connection Solution: The Phoenix Contact FBS 2-3,5 GY jumper provides reliable and efficient electrical connections.
- 23.5 mm Pitch: Designed with a 3.5 mm pitch for precise and secure terminal block bridging.
- 317.5 A Maximum Load Current: Handles up to 17.5 A of current, ensuring robust performance in various applications.
- 4Gray Color: Available in gray color for easy identification and integration into your system.
- 5Versatile Use: Suitable for bridging up to 50 terminal blocks in the CLIPLINE complete system, offering flexibility and convenience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 3.5 mm | Article revision | 03 |
Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 3.5 mm | Color | gray (RAL 7042) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
