Product Model

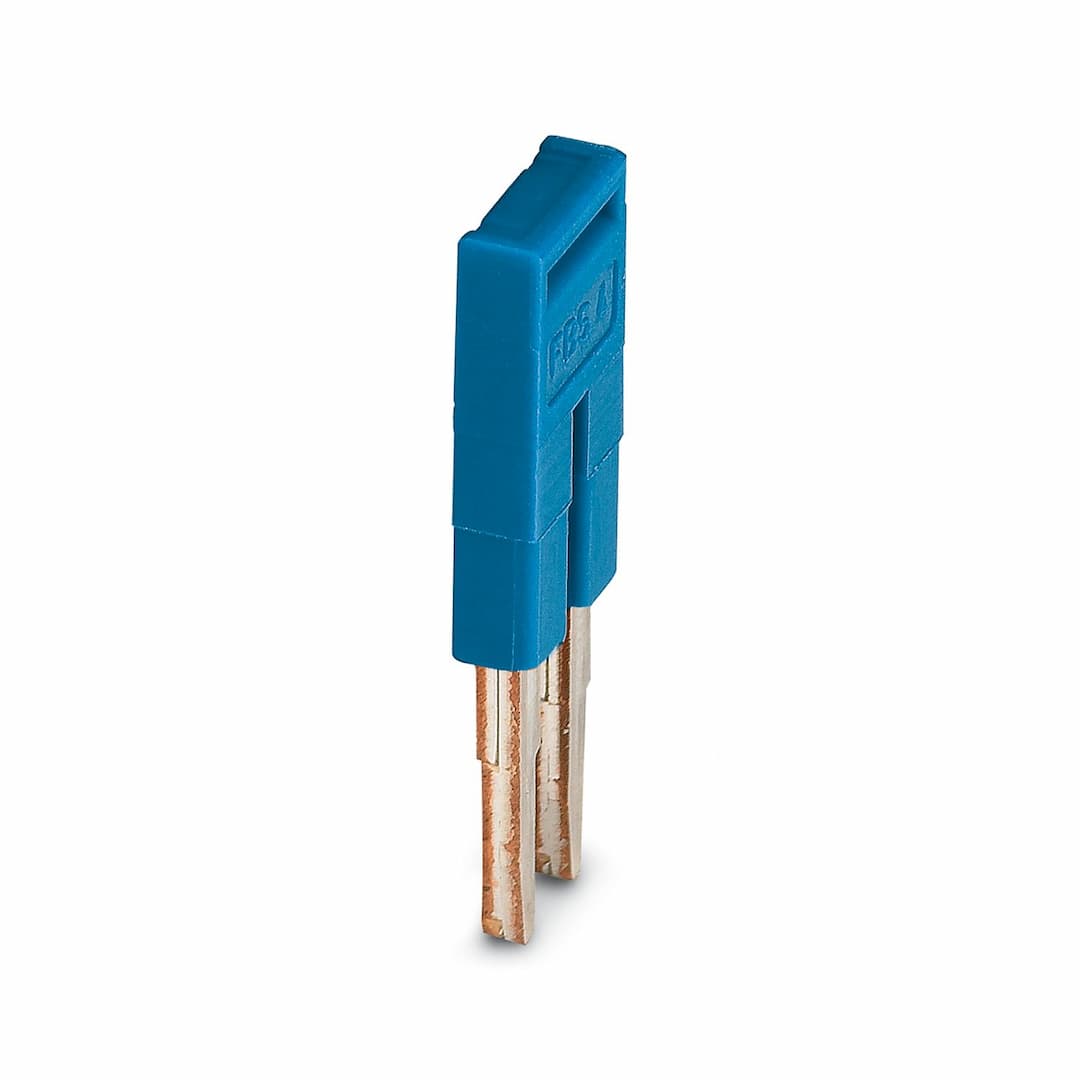

FBS 2-4 BU
Selling Points
- 1The FBS 2-4 BU from Phoenix Contact is designed to provide a robust and reliable connection.
- 2Features a compact design with a 4.2 mm pitch, ideal for space-constrained applications.
- 3Plug-in bridge design makes installation quick and straightforward.
- 4Built with durable materials to ensure long-lasting performance.
- 5Color-coded blue for easy identification and organization in your setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 4.2 mm | Article revision | 03 |
Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 4.2 mm | Color | blue (RAL 5015) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
