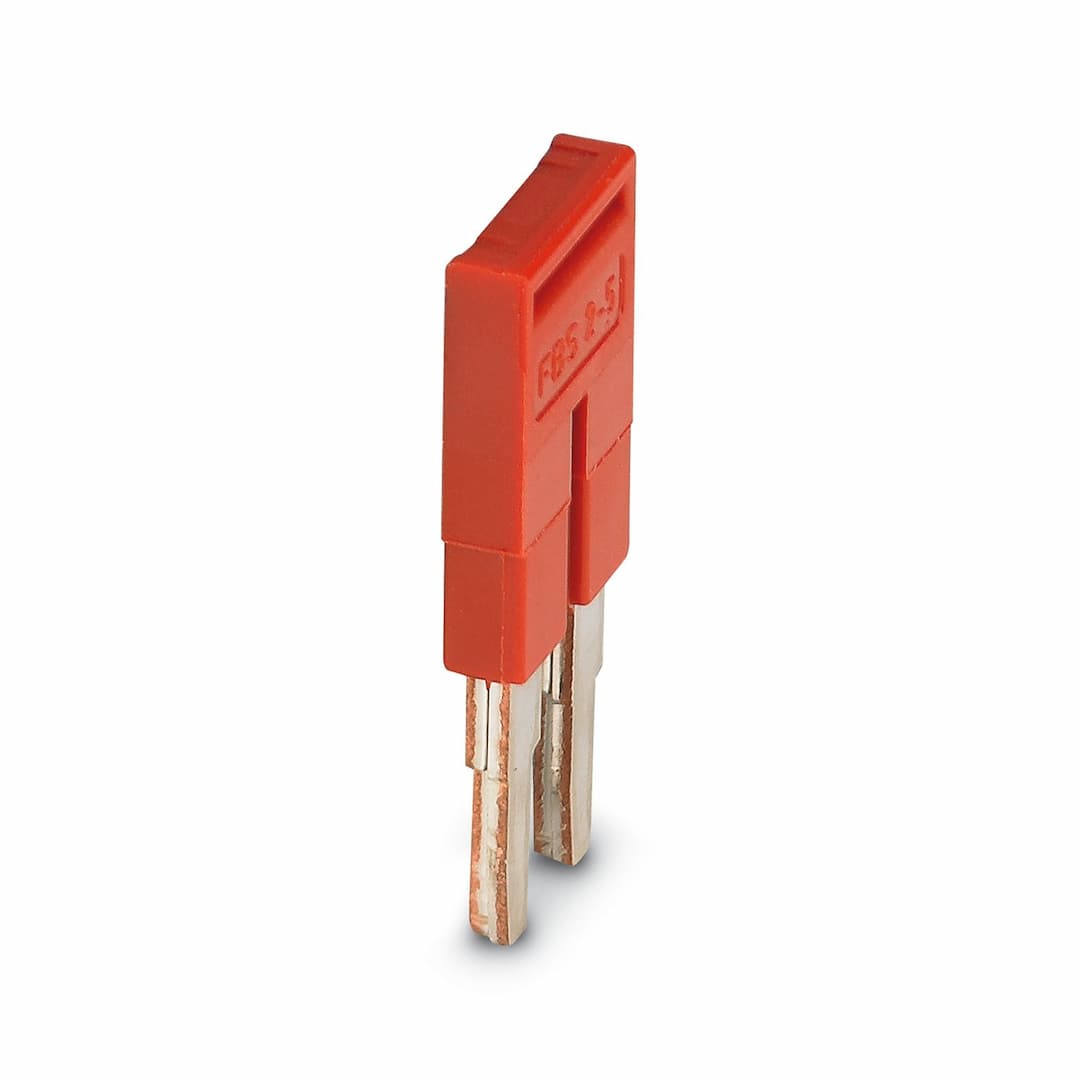

Product Model
FBS 2-5
Selling Points
- 1High-Quality Material: Made from durable copper for long-lasting performance.
- 2Efficient Design: 2-position plug-in bridge with a 5.2mm pitch for precise connections.
- 3Versatile Use: Compatible with the CLIPLINE series DIN rail terminal blocks.
- 4Environmentally Friendly: Compliant with China RoHS regulations, ensuring environmentally friendly use.
- 5Quick Installation: Usually ships same day or next day, making it perfect for urgent projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 5.2 mm | Article revision | 10 |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 9 mm | Height | 22.7 mm |
Depth | 3 mm | Length | 22.7 mm |
Pitch | 5.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
