Product Model

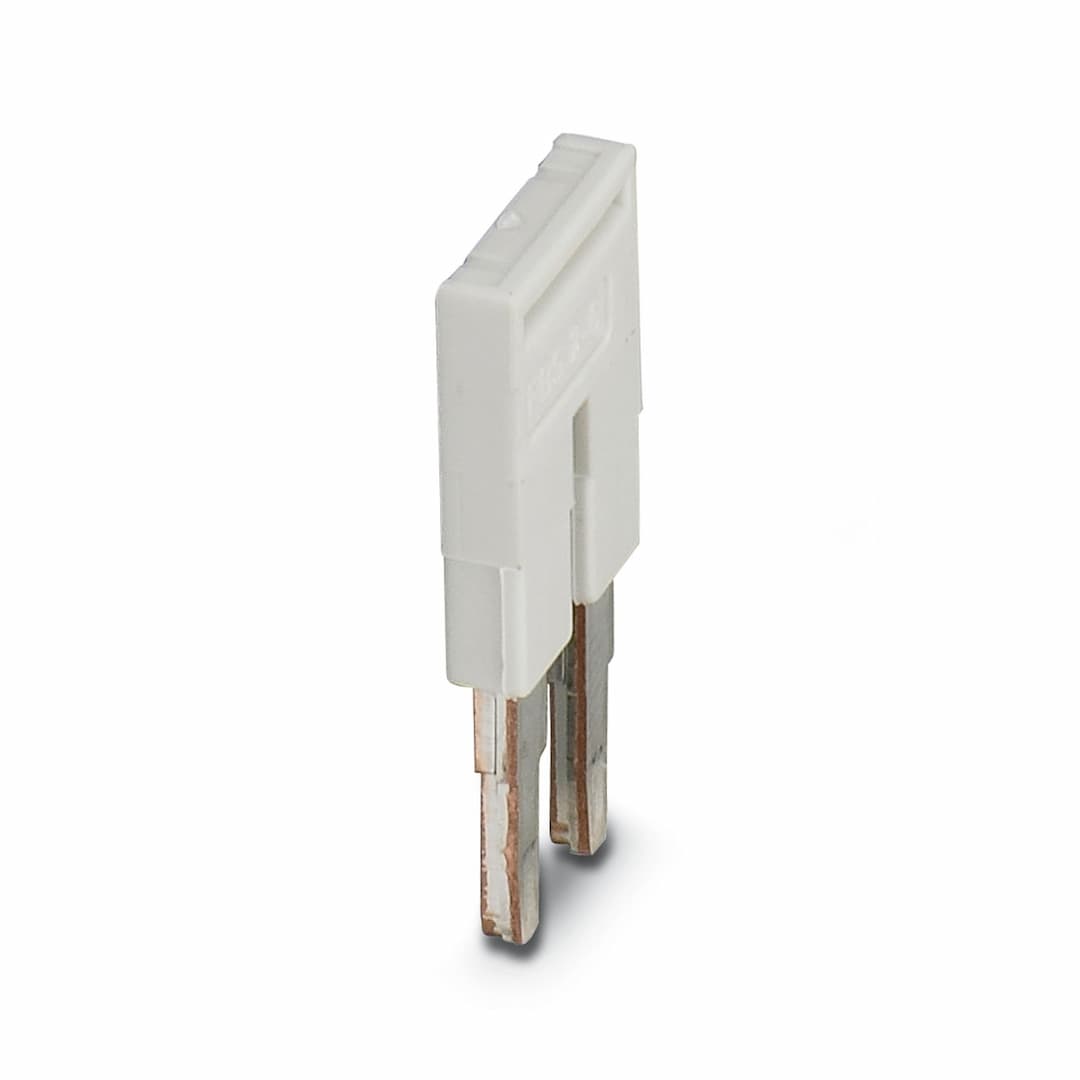

FBS 2-5 GY
Selling Points
- 1Built to last with high-quality materials.
- 2Simple plug-in design for quick setup.
- 3Compatible with a wide range of terminal blocks.
- 4Aesthetically pleasing and easy to identify.
- 5Perfect for bridging two terminal blocks efficiently.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 5.2 mm | Article revision | 05 |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 5.2 mm | Color | gray (RAL 7042) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
