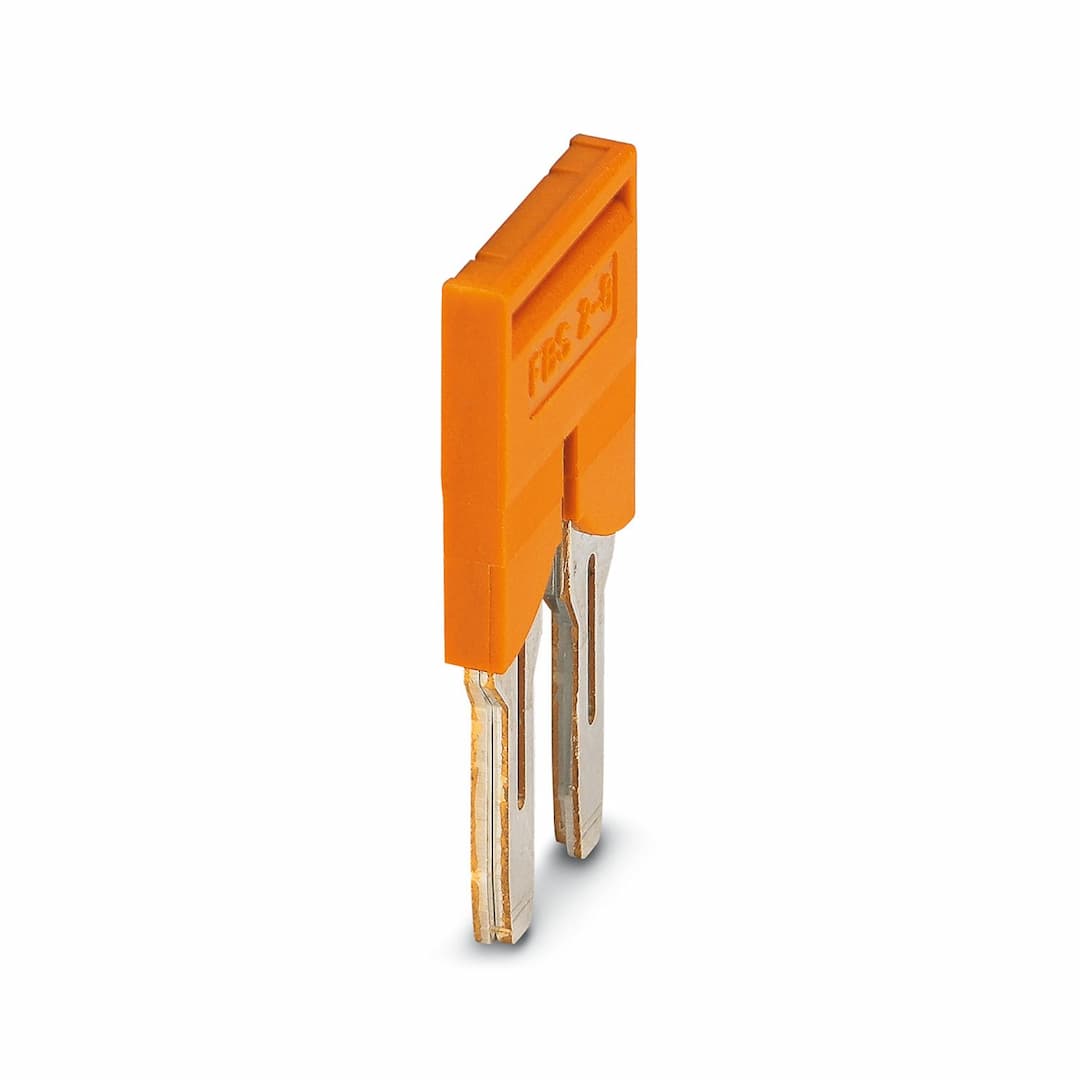

Product Model
FBS 2-8 CT
Selling Points
- 1High current capacity of 41A for efficient terminal block connections.
- 2Compatible with CLIPLINE complete system for seamless integration.
- 3Plug-in design with 8.2 mm pitch for easy installation.
- 4Orange color for clear visibility in complex wiring setups.
- 5Durable construction with copper material and PA insulating material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 8.2 mm | Article revision | 02 |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 14.7 mm | Height | 29.6 mm |
Depth | 29.6 mm | Pitch | 8.2 mm |
Color | orange (RAL 2003) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
