Product Model

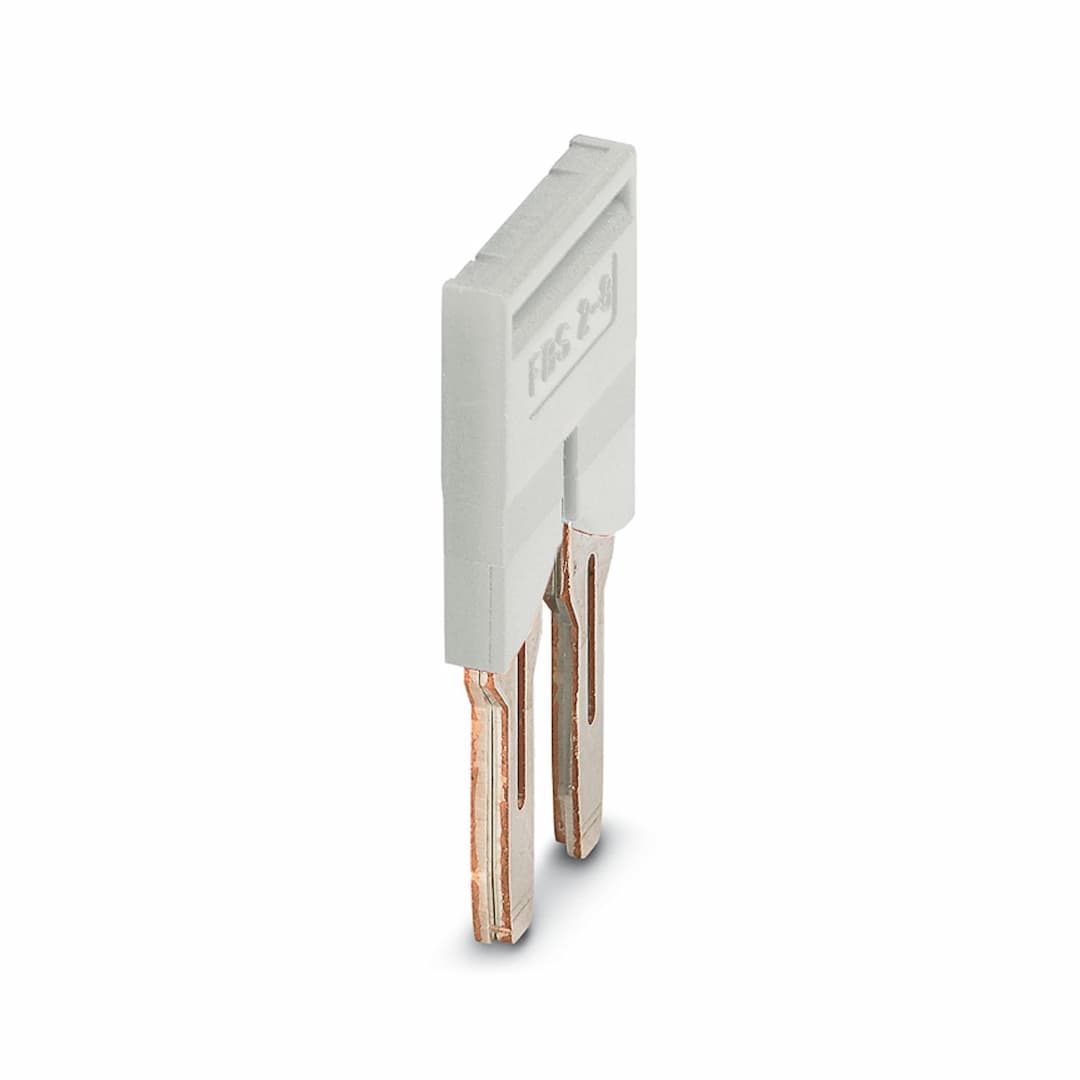

FBS 2-8 GY
Selling Points
- 1Efficient Connection: Connects up to 50 terminal blocks in one step.
- 2High Load Current: Supports maximum load current of 41 A.
- 3Durable Design: Made from copper with a flammability rating of UL 94 V0.
- 4Environmental Compliance: Meets China RoHS standards with no hazardous substances above threshold values.
- 5Versatile Mounting: Easy plug-in mounting for flexible installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 8.2 mm | Article revision | 03 |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 14.7 mm | Height | 29.6 mm |
Depth | 29.6 mm | Pitch | 8.2 mm |
Color | gray (RAL 7042) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
