Product Model

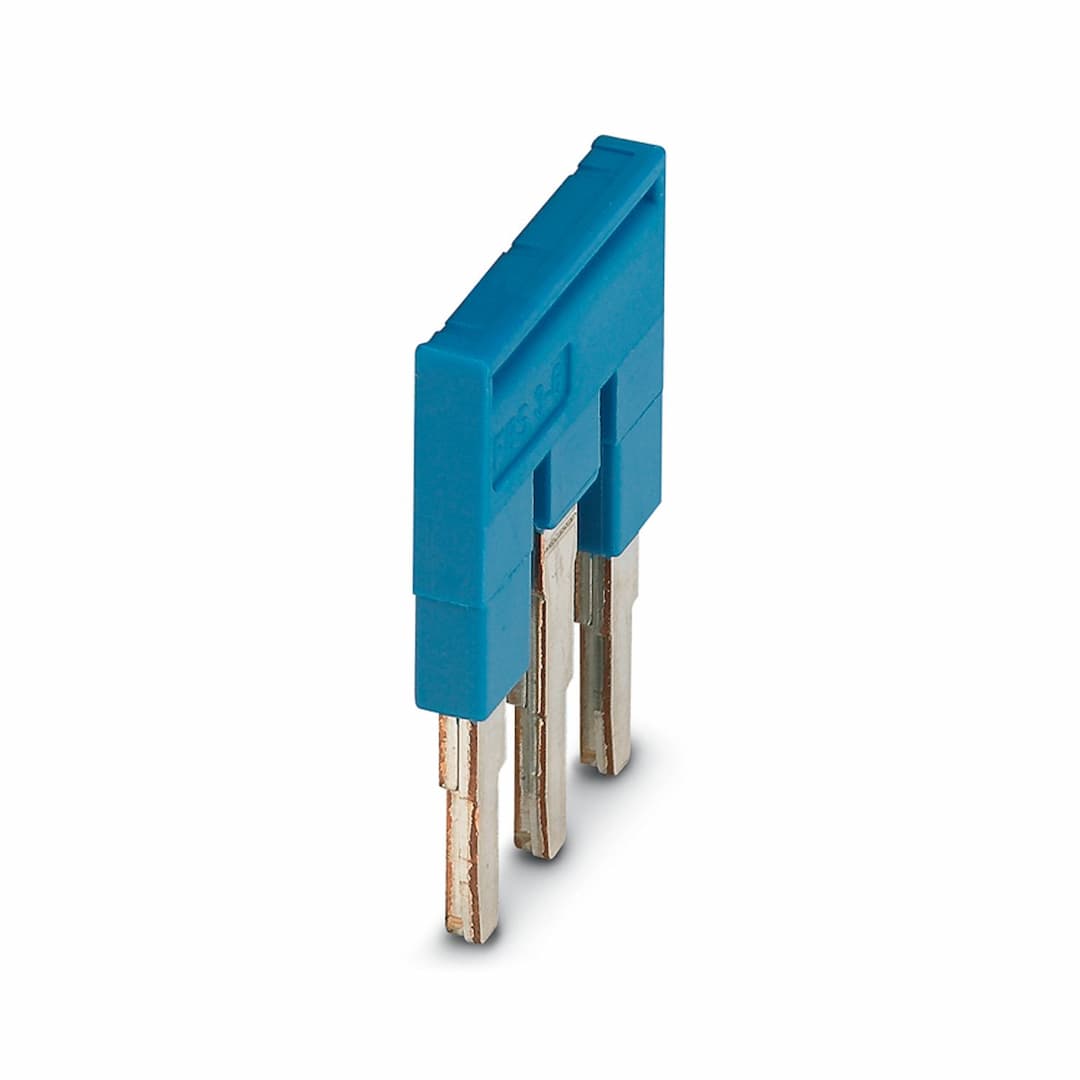

FBS 3-6 BU
Selling Points
- 1High-Quality Automation Solution: Designed for precise automation needs.
- 23 Positions: Ideal for complex circuit configurations.
- 36 mm Pin Spacing: Compatible with 6 mm terminal blocks.
- 4Plug-in Mountable: Easy installation into UT4 terminals.
- 518-Month Warranty: Reliable and durable with comprehensive coverage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 3 |
Pitch | 6.2 mm | Article revision | 05 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 16.9 mm | Height | 23 mm |
Depth | 23 mm | Pitch | 6.2 mm |
Color | blue (RAL 5015) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
