Product Model

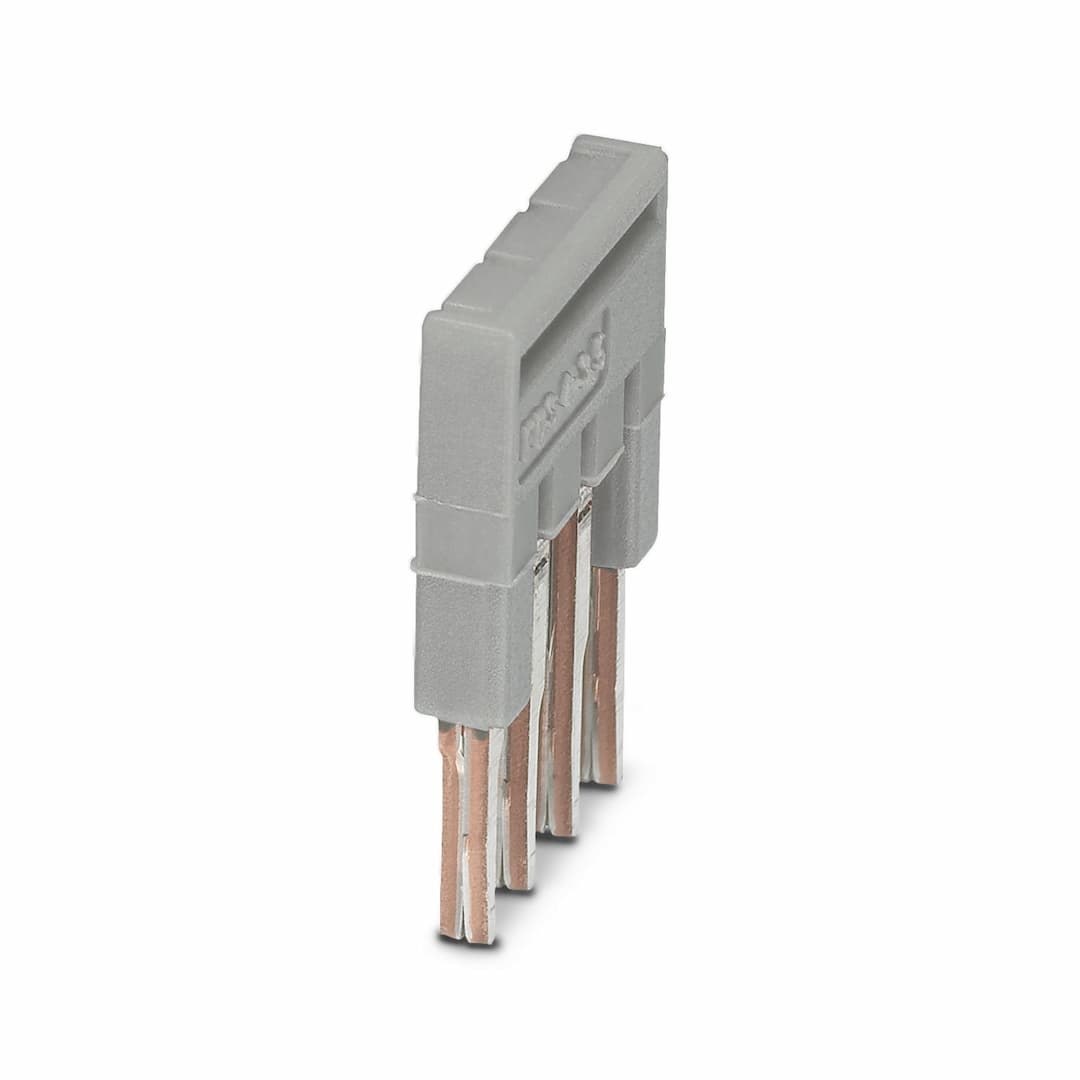

FBS 4-3,5 GY
Selling Points
- 1High-Quality Connectivity: The FBS 4-3.5 GY offers reliable and durable connections with a maximum load current of 17.5 A.
- 2Versatile Jumpering: Bridges up to 50 terminal blocks in one step, making it perfect for complex wiring systems.
- 3Easy Installation: Plug-in mounting ensures quick and tool-free installation, reducing setup time.
- 4Durable Materials: Constructed with copper and PA insulating material, ensuring high performance and longevity.
- 5Wide Ambient Temperature Range: Operates from -60°C to 105°C, making it suitable for various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 4 |
Pitch | 3.5 mm | Article revision | 03 |
Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 3.5 mm | Color | gray (RAL 7042) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
