Product Model
FBS 4-4
Selling Points

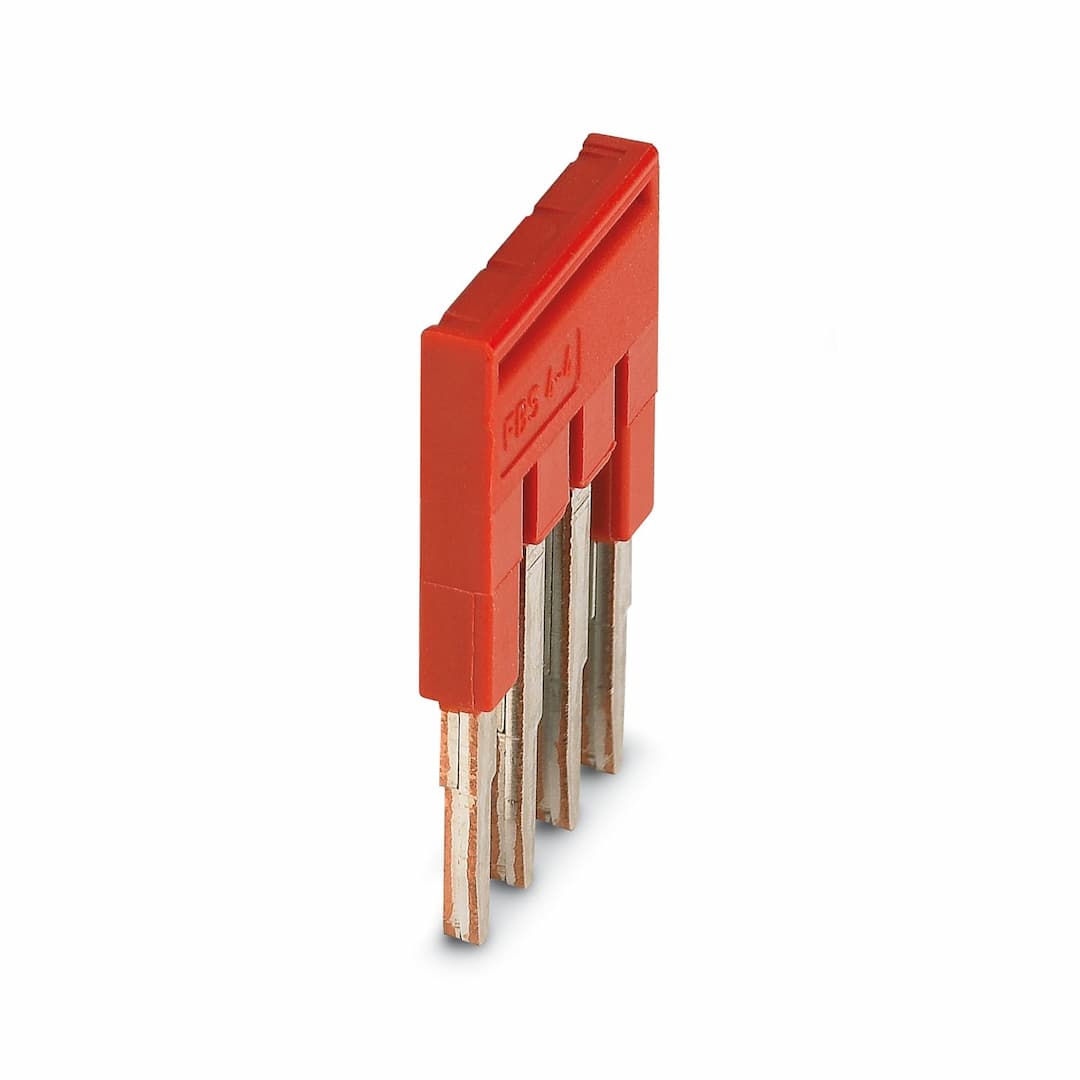

- 1High-Quality Connectivity: The FBS 4-4 plug-in bridge from Phoenix Contact provides reliable and efficient connections.
- 2Maximum Load Current: Supports a maximum load current of 17.5 A, suitable for various applications.
- 3Technical Precision: Designed with precise technical specifications for optimal performance.
- 4Durable Construction: Built to withstand the demands of industrial environments, ensuring long-lasting use.
- 5Easy Installation: Simple plug-in design makes installation quick and hassle-free.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 4 |
Pitch | 4.2 mm | Article revision | 06 |
Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 4.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
