Product Model

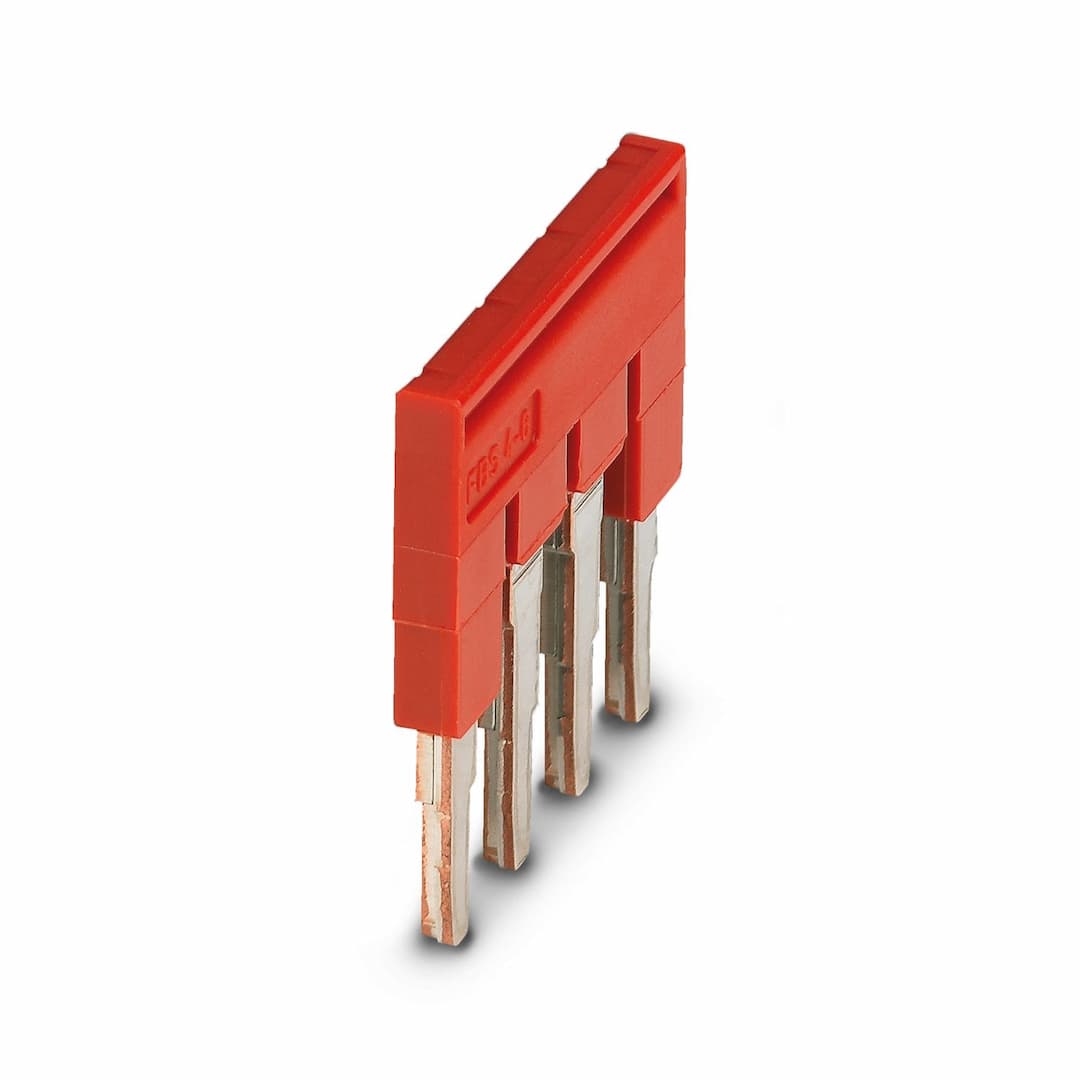

FBS 4-6
Selling Points
- 1Durable and reliable plug-in bridge designed for long-lasting performance.
- 2Simple to install with 4 positions, perfect for various terminal block applications.
- 3Compact size fits seamlessly into your electrical setup, reducing clutter.
- 4Available in both red and blue to match your specific terminal block color scheme.
- 5Available at an affordable price of $2.02 per unit, ideal for bulk purchases.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 4 |
Pitch | 6.2 mm | Article revision | 07 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 23.1 mm | Height | 23 mm |
Depth | 23 mm | Pitch | 6.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
