Product Model

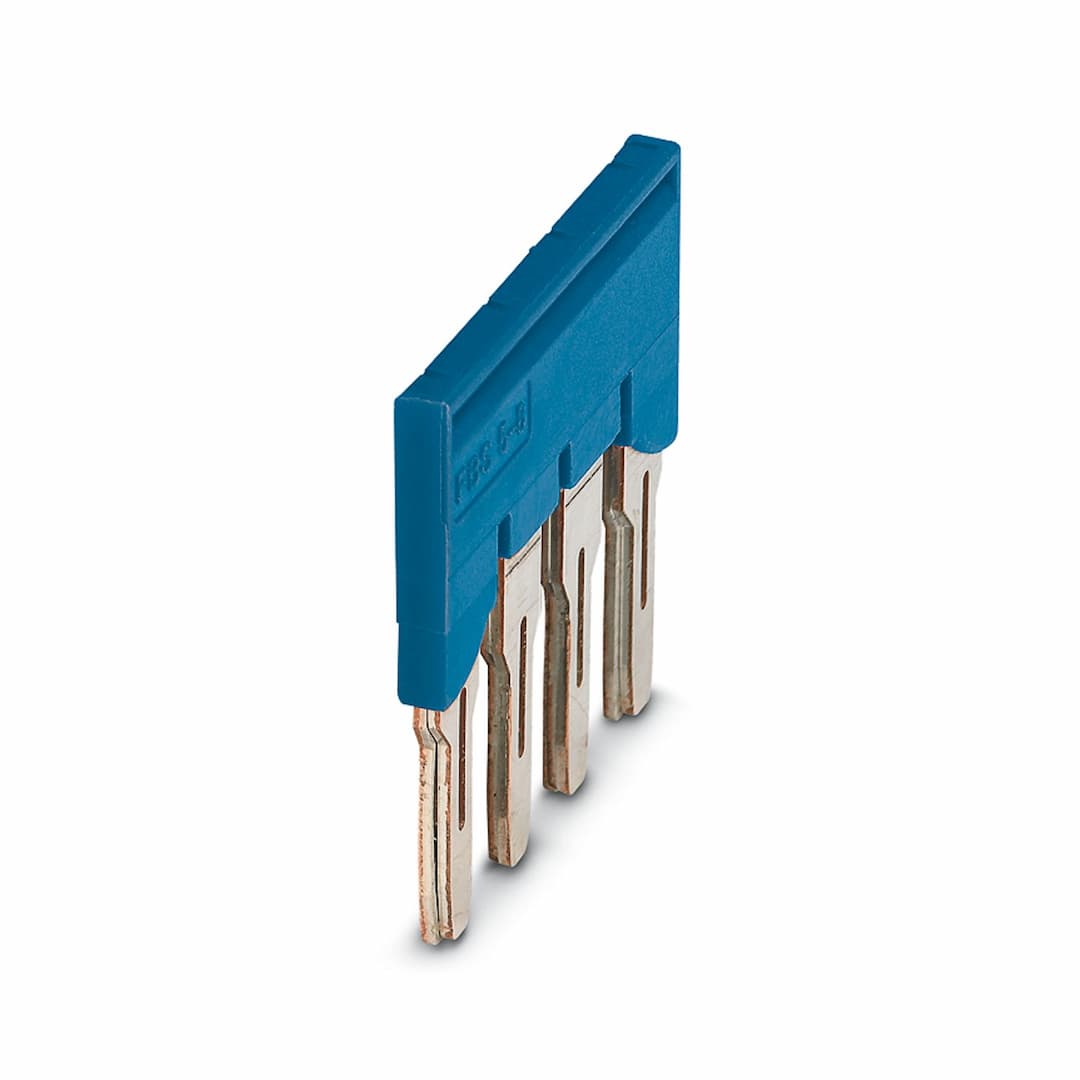

FBS 4-8 BU
Selling Points
- 1The FBS 4-8 BU plug-in bridge offers reliable and efficient connections with a pitch of 8.2 mm.
- 2Bridges up to 50 terminal blocks in the CLIPLINE complete system, simplifying your electrical setup.
- 3Supports a maximum load current of 41 A, ensuring robust performance in various applications.
- 4Made from copper with a flammability rating of V0, providing excellent durability and safety.
- 5Features plug-in mounting for quick and easy installation, reducing setup time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 4 |
Pitch | 8.2 mm | Article revision | 03 |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 31.1 mm | Height | 29.6 mm |
Depth | 29.6 mm | Pitch | 8.2 mm |
Color | blue (RAL 5015) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
