Product Model

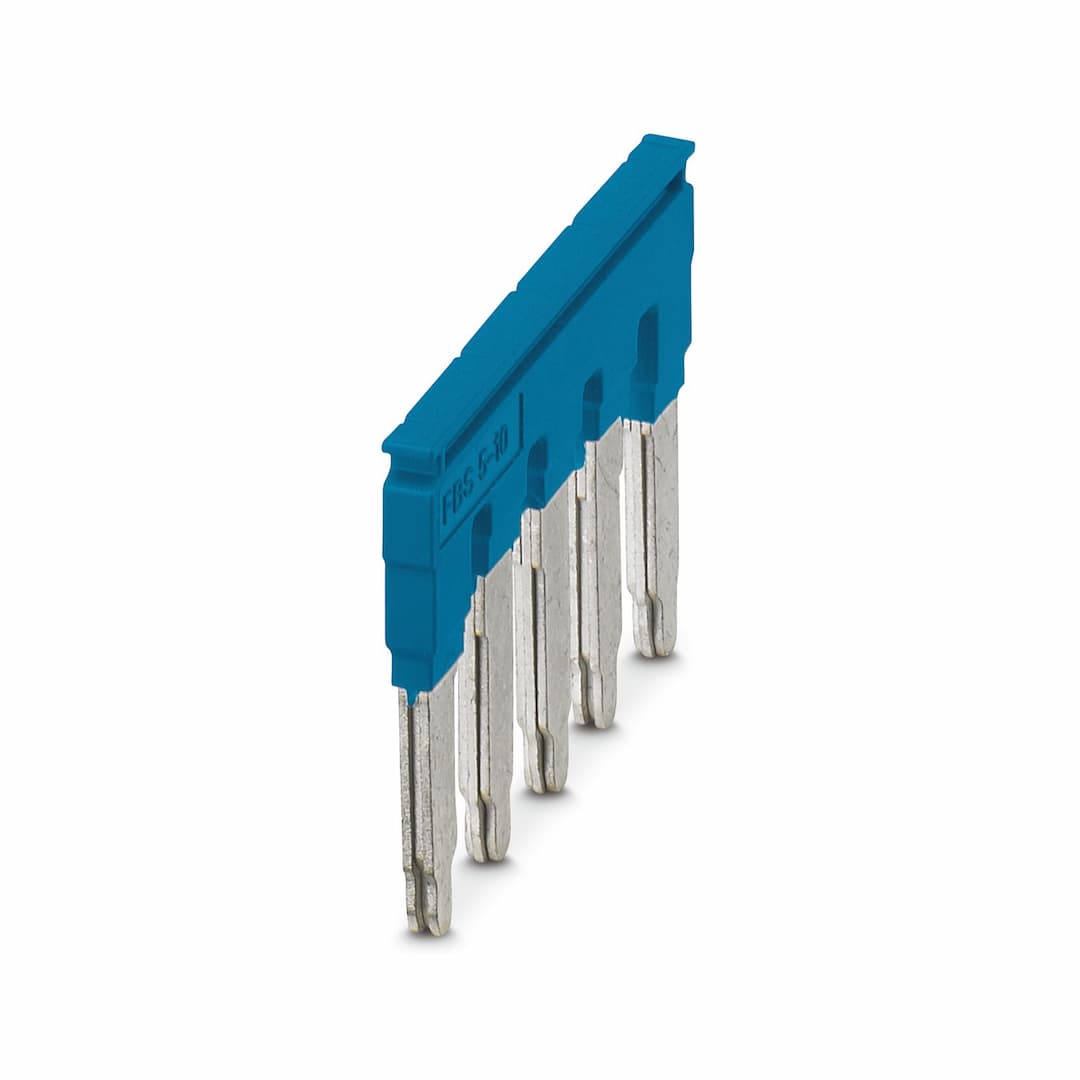

FBS 5-10 BU
Selling Points
- 1Designed for plug-in bridge scenarios, simplifying connections.
- 2Compatible with modular terminal blocks, ensuring seamless integration.
- 3Features a blue color and 10.2 mm pitch for precise alignment.
- 4Easy to use, saving time with a simple push-in connection method.
- 5Ideal for applications requiring a reliable and efficient jumper solution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Plug-in bridge | Number of positions | 5 |
Pitch | 10.2 mm | Maximum load current | 57 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 57 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Pitch | 10.2 mm |
Color | blue (RAL 5015) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
