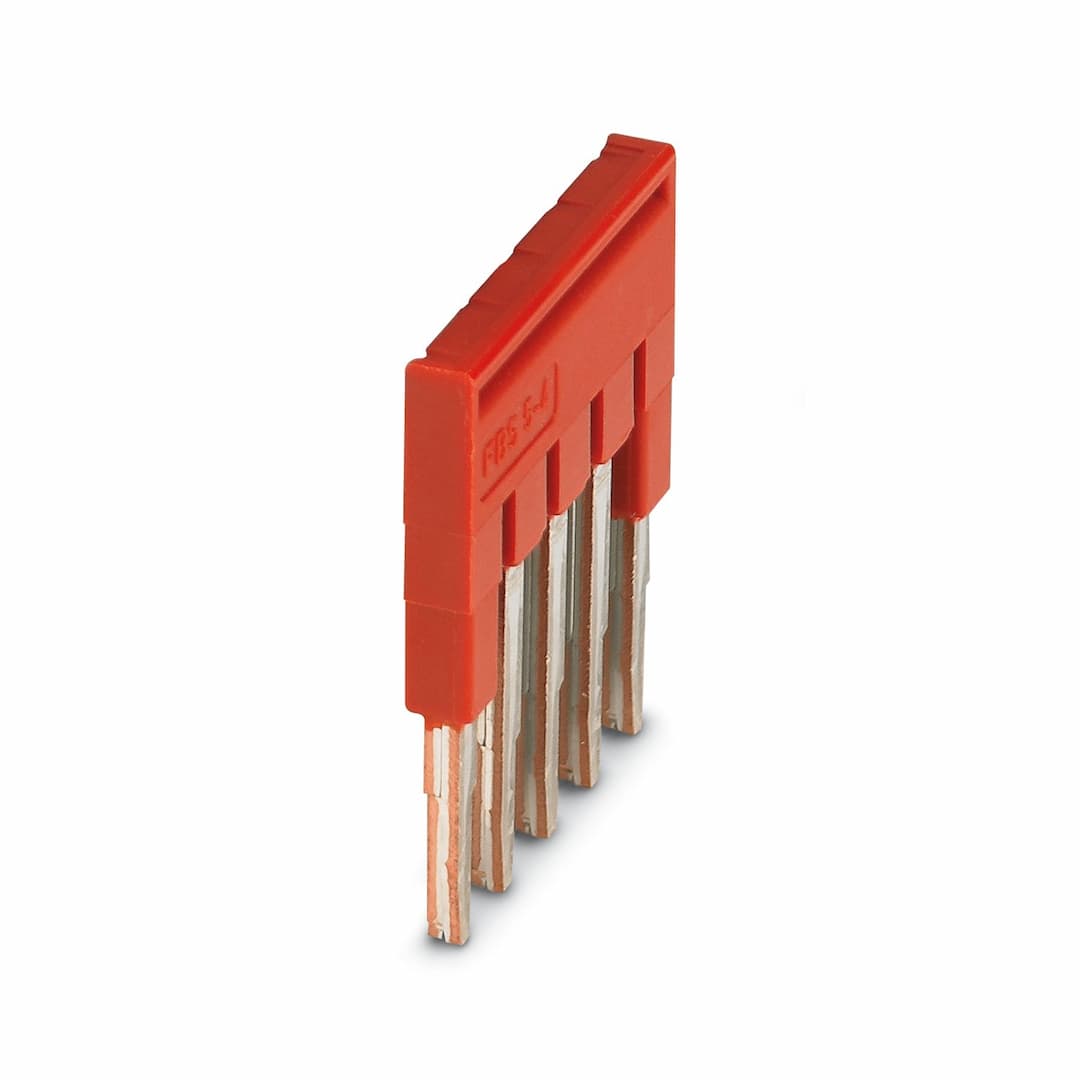

Phoenix FBS 5-4 Plug-in Bridge - High-Quality Connector Solutions

Selling Points

1Reliable Cross-Connection Solution: The Phoenix FBS 5-4 provides a secure and efficient way to connect electrical components.
2High Nominal Current: With a nominal current of 17.5A, this plug-in bridge is suitable for demanding industrial applications.
3Compact Design: The 5-pin configuration and blue color make it easy to integrate into various electrical systems.
4Durable Construction: Built to withstand the rigors of industrial environments, ensuring long-lasting performance.
5Easy Installation: Plug-in design simplifies the installation process, reducing setup time and effort.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Jumper	Number of positions	5
Pitch	4.2 mm	Article revision	06
Maximum load current	17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)	Maximum load current	17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Pitch	4.2 mm	Color	red (RAL 3001)
Material	Copper	Flammability rating according to UL 94	V0
Insulating material	PA	Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)	Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C	Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %	Mounting type	Plug-in mounting

Specifications may be subject to change without notice
