Product Model

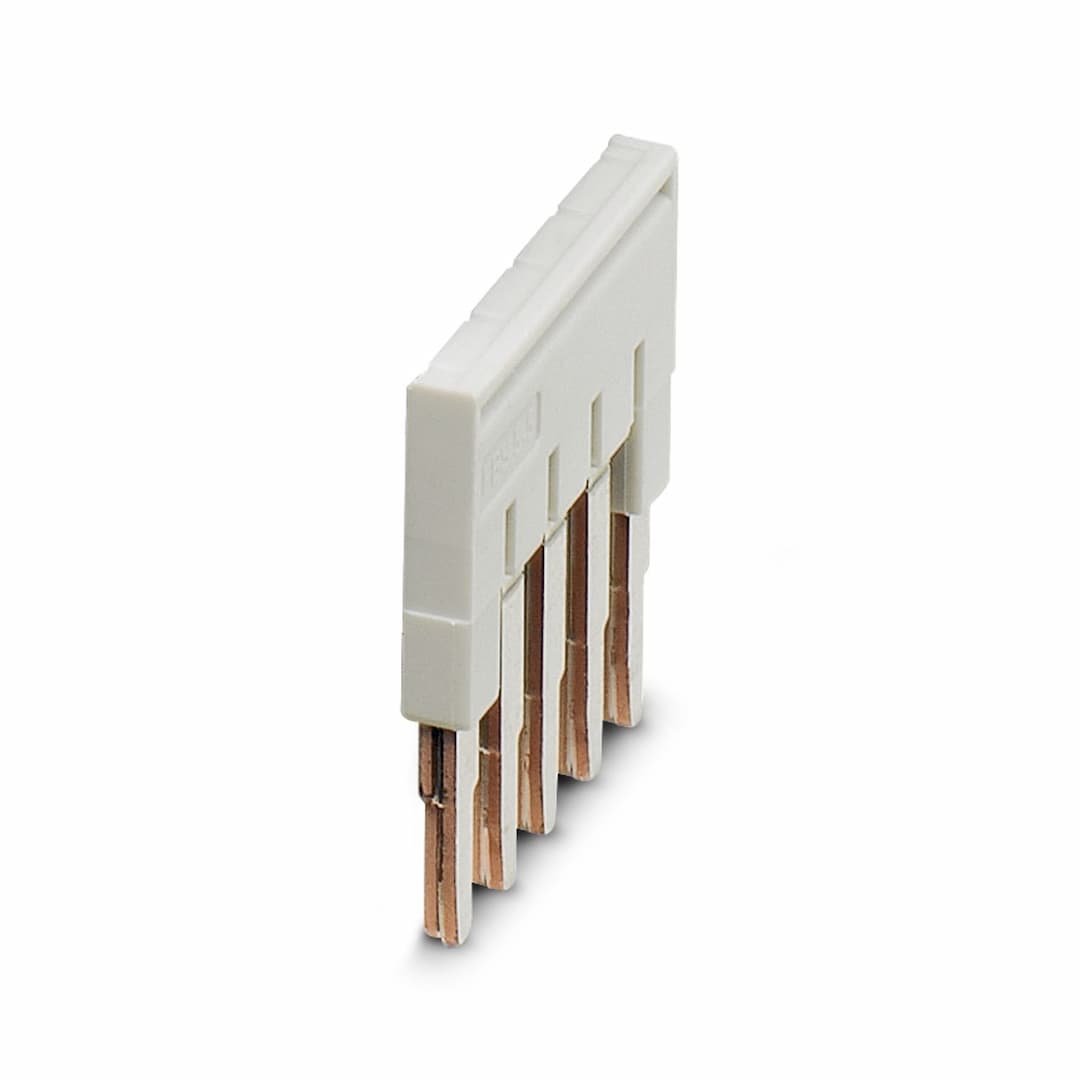

FBS 5-5 GY
Selling Points
- 1Made from durable copper material with a flammability rating of V0 according to UL 94.
- 2Measures 24.6 mm in width, 23 mm in height, and 3 mm in depth, ensuring efficient use of space.
- 3Features plug-in mounting for quick and secure connection to modular terminal blocks.
- 4Suitable for a variety of electrical applications due to its robust design and reliable performance.
- 5Includes cutting tools and protective caps for easy handling and maintenance of the plug-in bridge.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 5 |
Pitch | 5.2 mm | Article revision | 05 |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 5.2 mm | Color | gray (RAL 7042) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
