Product Model

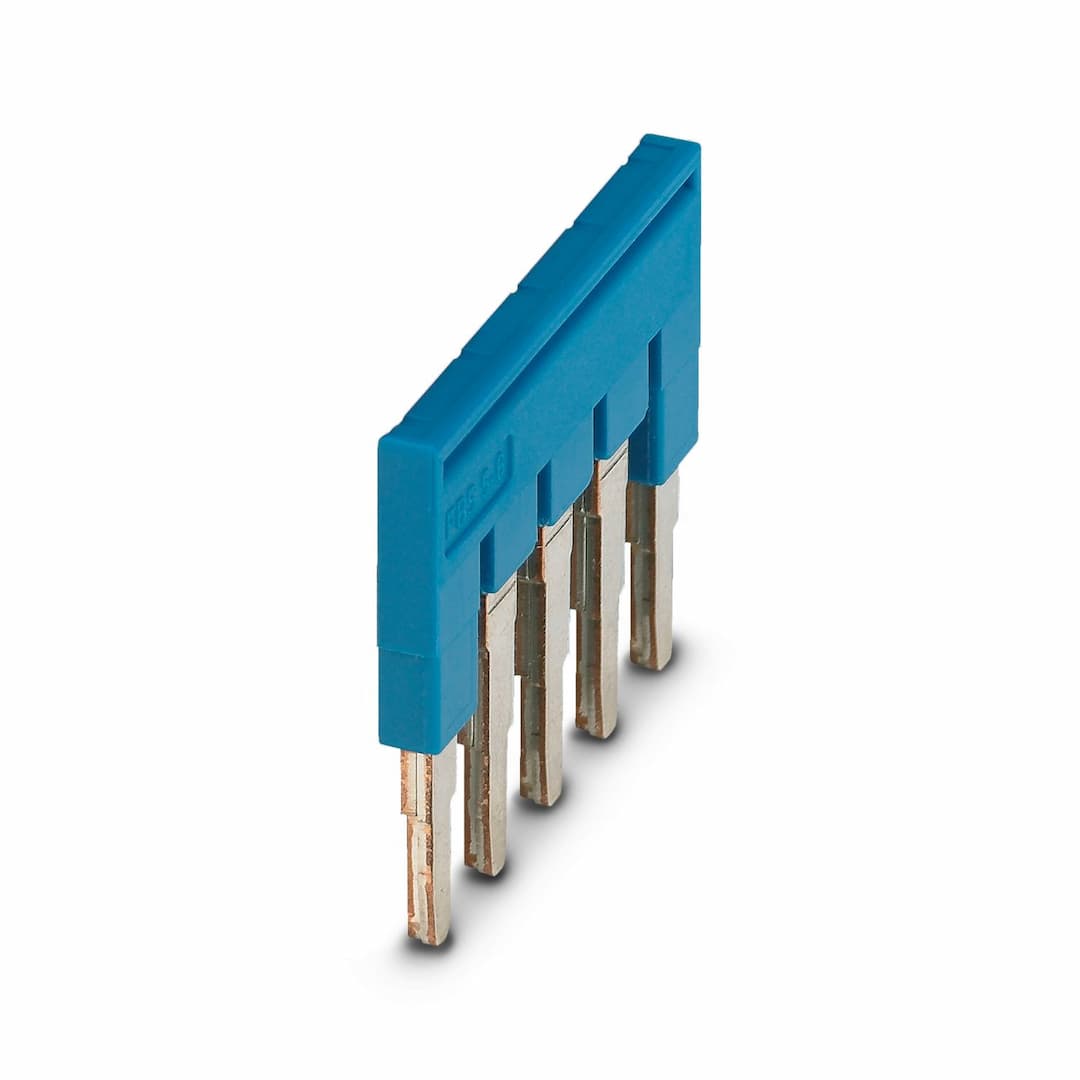

FBS 5-6 BU
Selling Points
- 1High-Quality Material: Made from durable copper for long-lasting performance.
- 2Easy Installation: Plug-in design simplifies connection and disconnection.
- 3Compact Design: 5-position bridge with a pitch spacing of 6.2 mm, perfect for tight spaces.
- 4RoHS Compliant: Meets RoHS standards for environmental sustainability.
- 5Versatile Use: Suitable for various industrial applications with FBS series connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 5 |
Pitch | 6.2 mm | Article revision | 05 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 29.3 mm | Height | 23 mm |
Depth | 23 mm | Pitch | 6.2 mm |
Color | blue (RAL 5015) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
