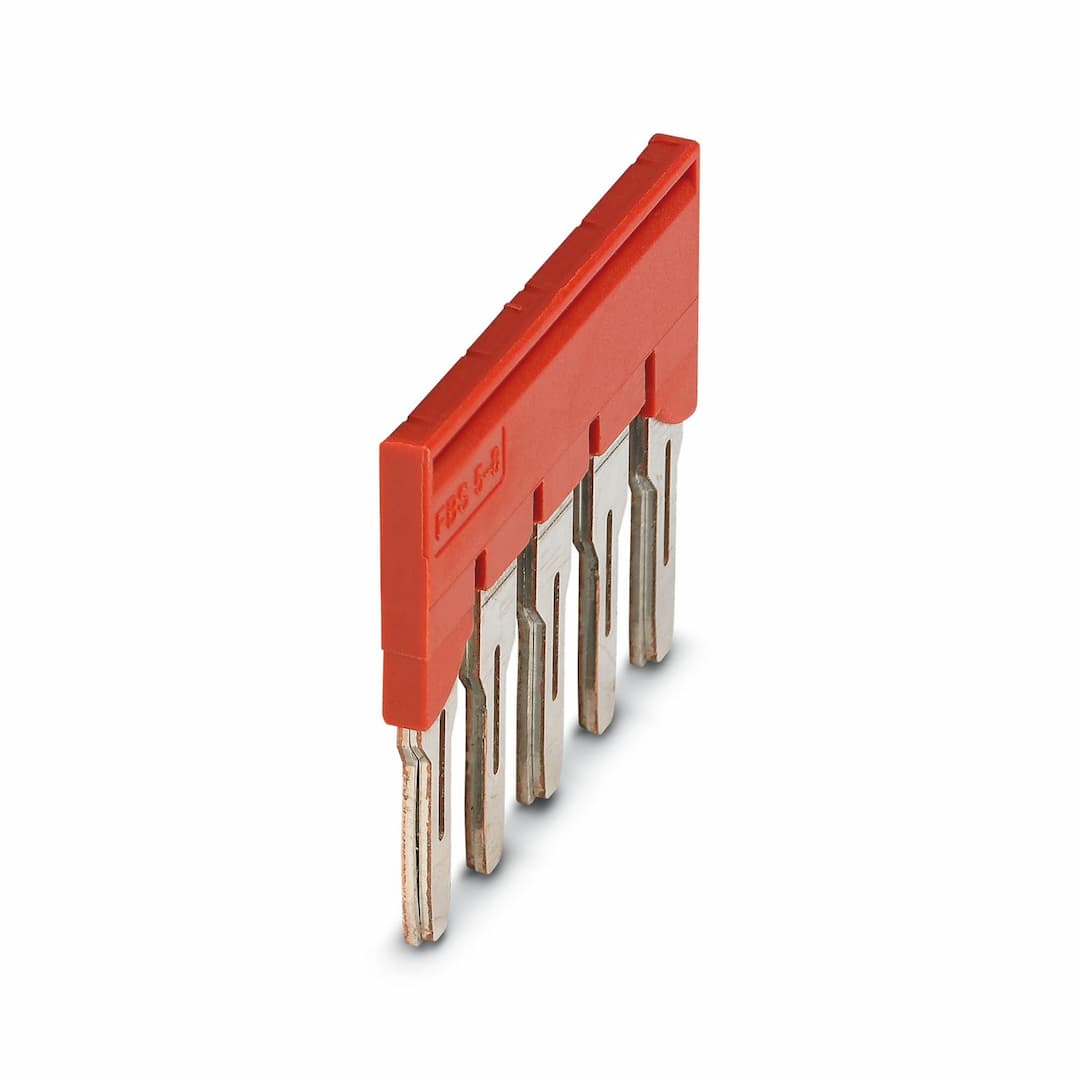

Product Model
FBS 7-8
Selling Points
- 1The Phoenix Contact FBS 7-8 Series Plug-in Bridge provides consistent and reliable connections, essential for industrial applications.
- 2Engineered with precision, this bridge ensures efficient signal transmission and minimizes signal loss.
- 3Built with high-quality materials, the bridge withstands harsh environmental conditions, making it ideal for demanding industrial settings.
- 4Available in multiples of 10, this plug-in bridge simplifies installation processes, reducing downtime and increasing productivity.
- 5Manufactured in Germany, the Phoenix Contact FBS 7-8 Series Plug-in Bridge adheres to stringent quality standards, ensuring durability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Version with single- or double-sided cutting edge. Keep in mind the possible impact on touch protection as well as the air clearances and creepage distances. For applications in explosion-proof areas, the voltage reduces to the voltage specified in the Ex certificate for bridges that are cut to length. | Product type | Jumper |
Number of positions | 7 | Pitch | 8.2 mm |
Article revision | 02 | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Width | 55.7 mm |
Height | 29.6 mm | Depth | 29.6 mm |
Pitch | 8.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
