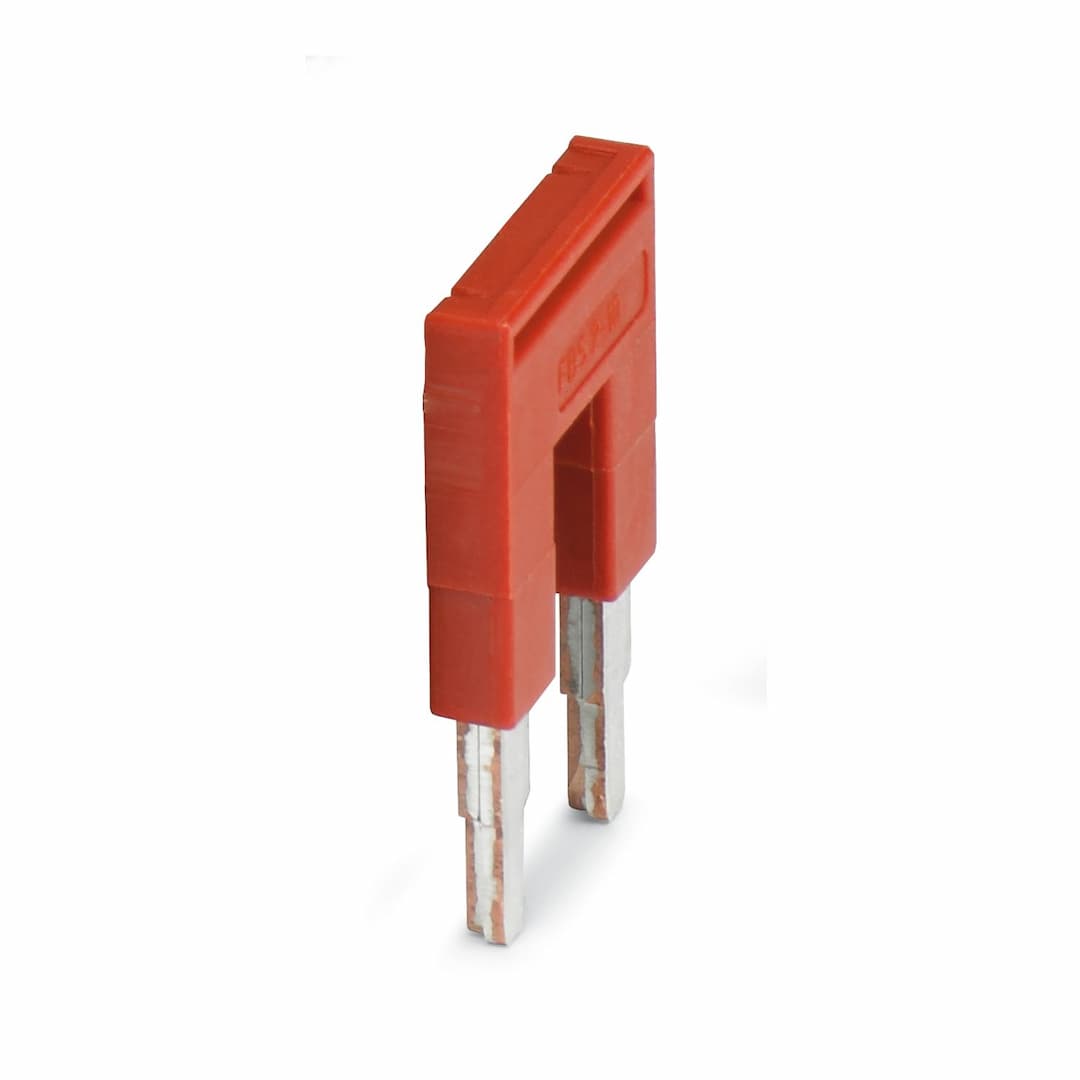

Product Model
FBSK 10-10
Selling Points
- 1Fully Insulated Design: Ensures reliable electrical connections.
- 210 mm Pitch: Compact and easy to integrate into your system.
- 310 Positions: Ideal for applications requiring multiple connections.
- 4WEEE/RoHS Compliant: Environmentally friendly and compliant with international standards.
- 5High Insulation Properties: Provides excellent electrical isolation and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Bridge | Product family | FBSK |
Product line | COMBICON Terminals Special | Number of positions | 10 |
Pitch | 10 mm | Number of connections | 10 |
Number of rows | 1 | Number of potentials | 10 |
Article revision | 02 | Pitch | 10 mm |
Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 | Contact material | Cu alloy |
Color (Housing) | red (3001) | Insulating material | PA |
Insulating material group | I | CTI according to IEC 60112 | 600 |
Flammability rating according to UL 94 | V0 | Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 | Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Insulating material | PA | CTI according to IEC 60112 | 600 |
Specifications may be subject to change without notice
