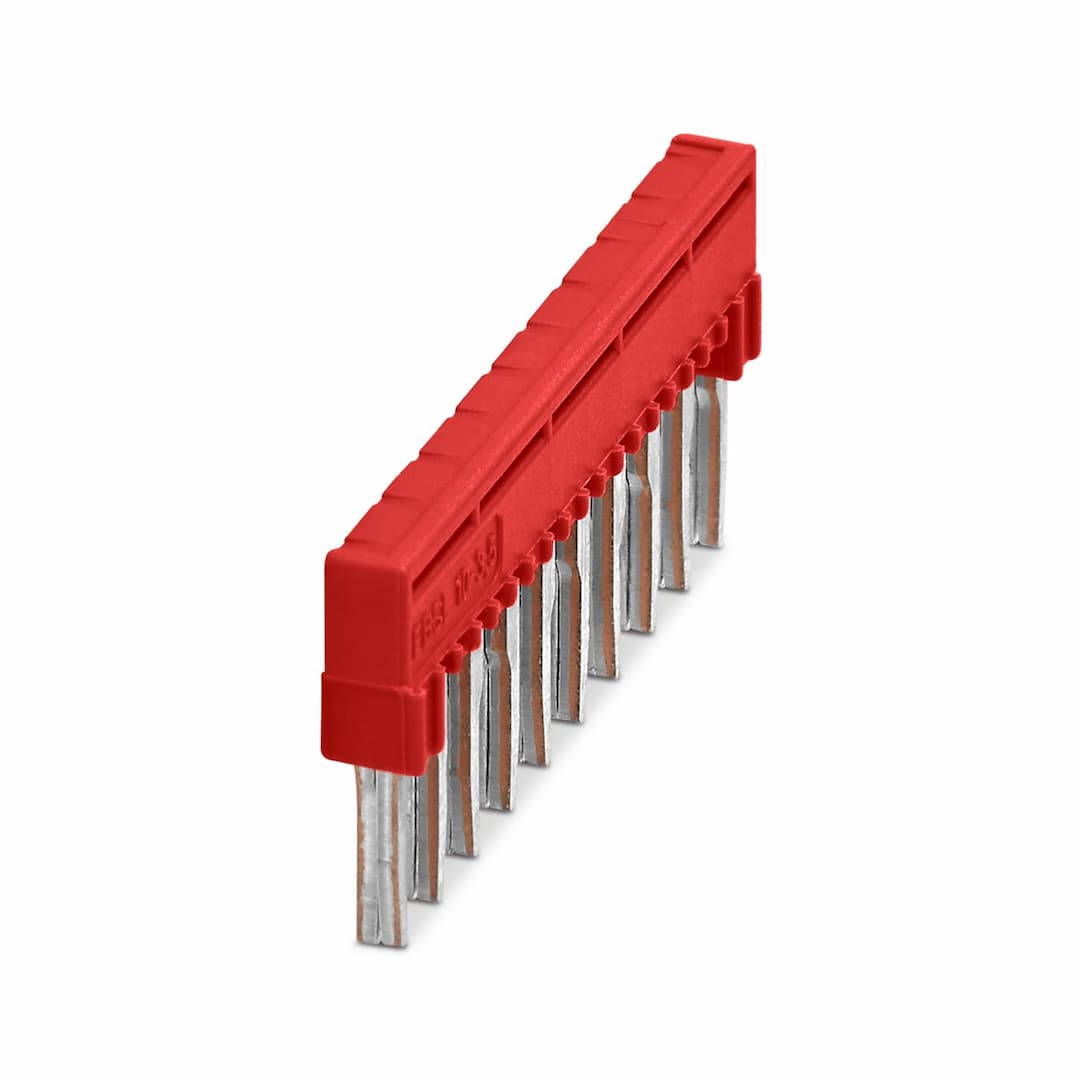

Product Model
FBSL 10-3,5
Selling Points
- 1Compact dimensions: 34.7 mm width, 13.5 mm height, and 3.7 mm length.
- 2High current carrying capacity: Maximum load current of 17.5 A.
- 3Versatile jumper options: 2- to 50-pos. jumpers for bridging multiple terminal blocks.
- 4Durable construction: Made from copper with a flammability rating of UL 94 V0.
- 5Easy plug-in mounting: Simple and secure connection to modular terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Plug-in bridge | Number of positions | 10 |
Article revision | 00 | Maximum load current | The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks. |
Maximum load current | The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks. | Width | 34.7 mm |
Height | 3.7 mm | Depth | 13.5 mm |
Length | 3.7 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
