Product Model

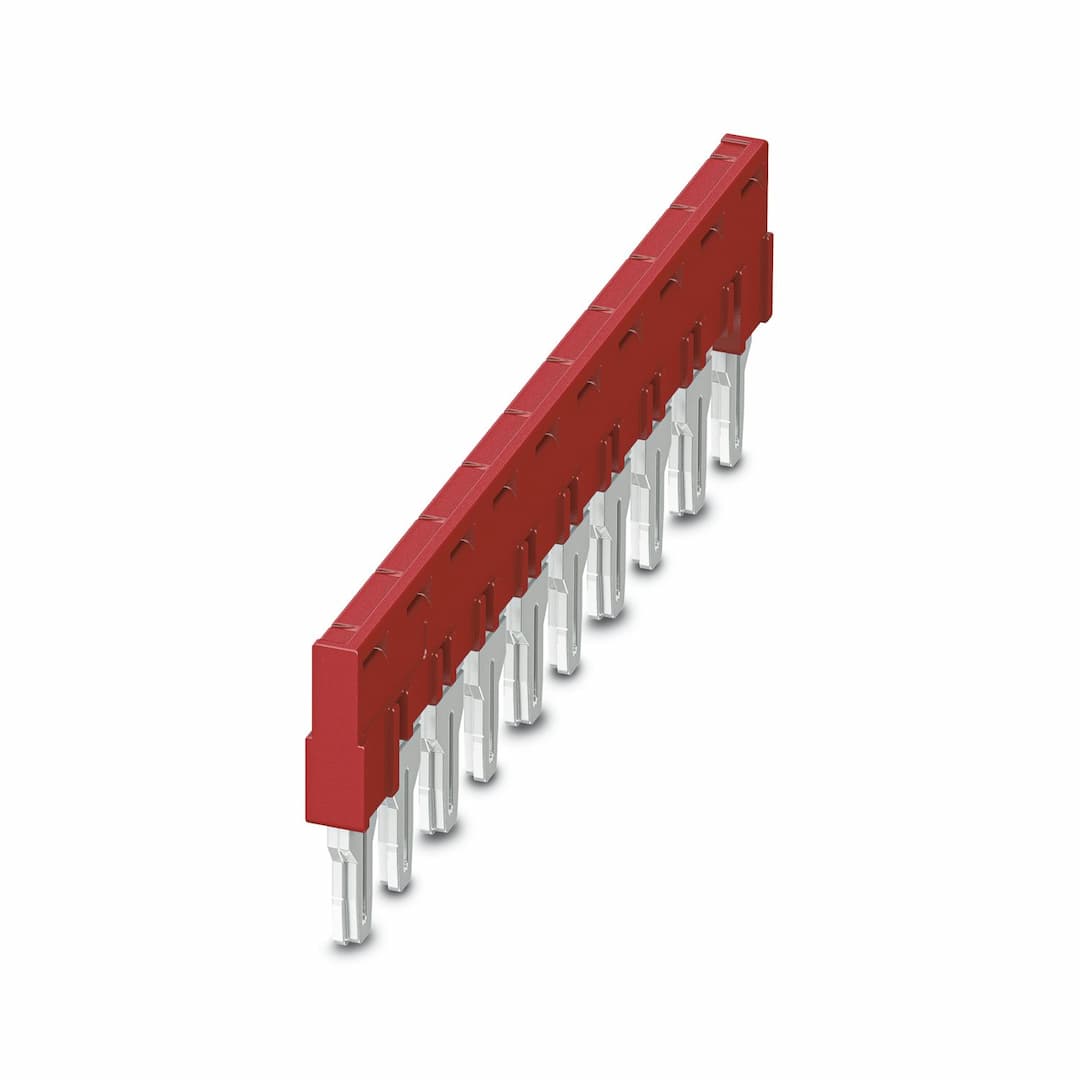

FBSL 10-8
Selling Points
- 1The FBSL 10-8 features a compact design with dimensions of 80.3 mm in width and 20.38 mm in height, making it perfect for space-constrained applications.
- 2Built with durable materials, this plug-in bridge ensures high reliability and long-lasting performance in automation systems.
- 3Designed for seamless integration, the FBSL 10-8 simplifies the connection process, reducing setup time and increasing efficiency.
- 4Suitable for various automation needs, this plug-in bridge can be used in a range of applications, from industrial control to panel building.
- 5Backed by the Phoenix Contact guarantee, ensuring you receive a product that meets high standards of quality and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 10 |
Pitch | 8.2 mm | Article revision | 00 |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 80.3 mm | Height | 20.38 mm |
Depth | 20.38 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
