Product Model

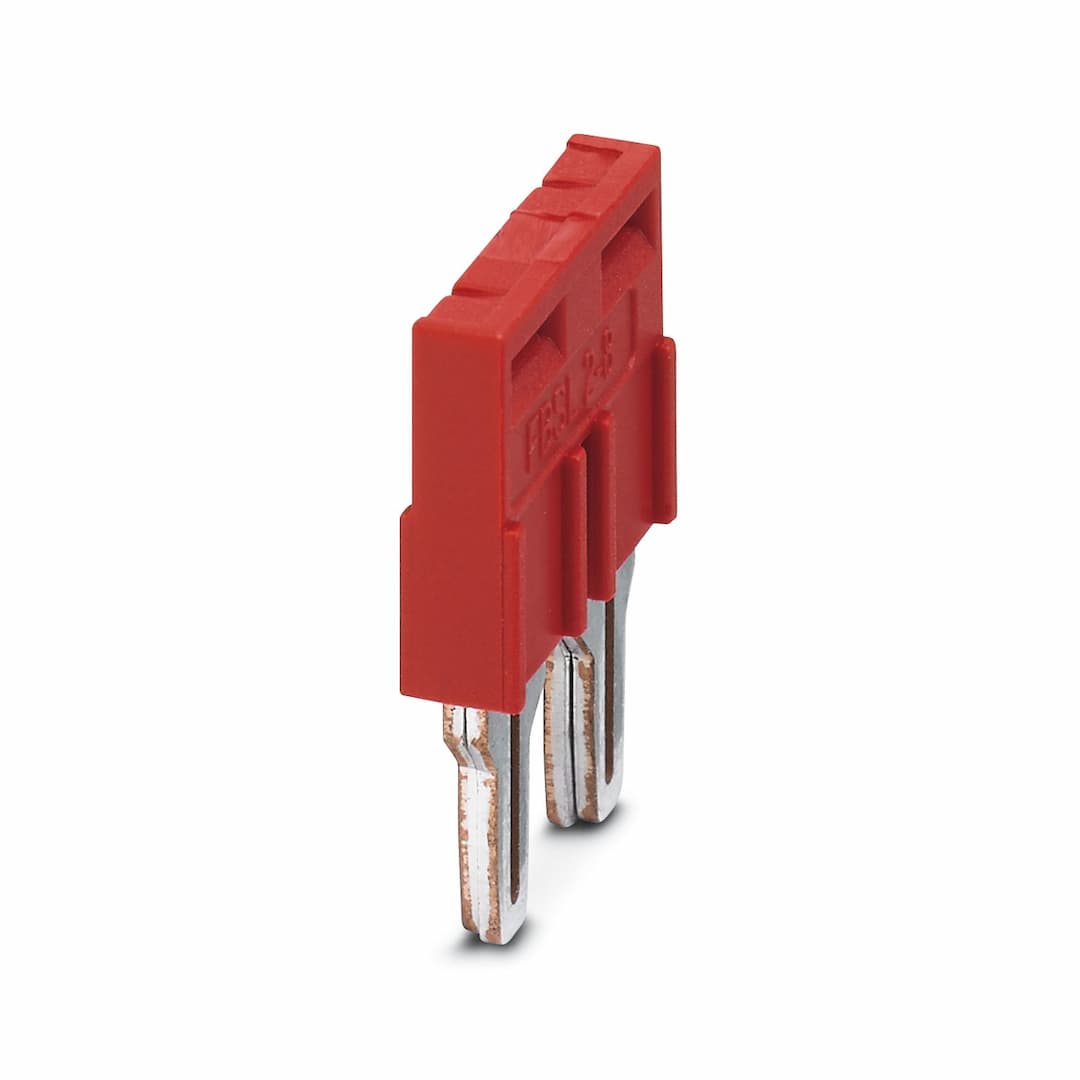

FBSL 2-8
Selling Points
- 1Efficient Terminal Block Connection: The FBSL 2-8 plug-in bridge can connect up to 50 terminal blocks in one step, simplifying your electrical engineering tasks.
- 2Red Color and High Visibility: The jumper is colored red, enhancing visibility and making it easier to identify in complex electrical systems.
- 3Copper Material and UL 94 V0 Rating: Made from copper, this jumper features a UL 94 V0 flammability rating, ensuring safety in high-temperature environments.
- 4Compact Dimensions: With dimensions of 14.7 mm width, 20.38 mm height, and 20.38 mm depth, it fits seamlessly into your industrial setup.
- 5Compliance with EU and China RoHS: The FBSL 2-8 plug-in bridge complies with EU and China RoHS regulations, ensuring environmentally friendly use and no hazardous substances above threshold values.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 8.2 mm | Article revision | 00 |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 14.7 mm | Height | 20.38 mm |
Depth | 20.38 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
