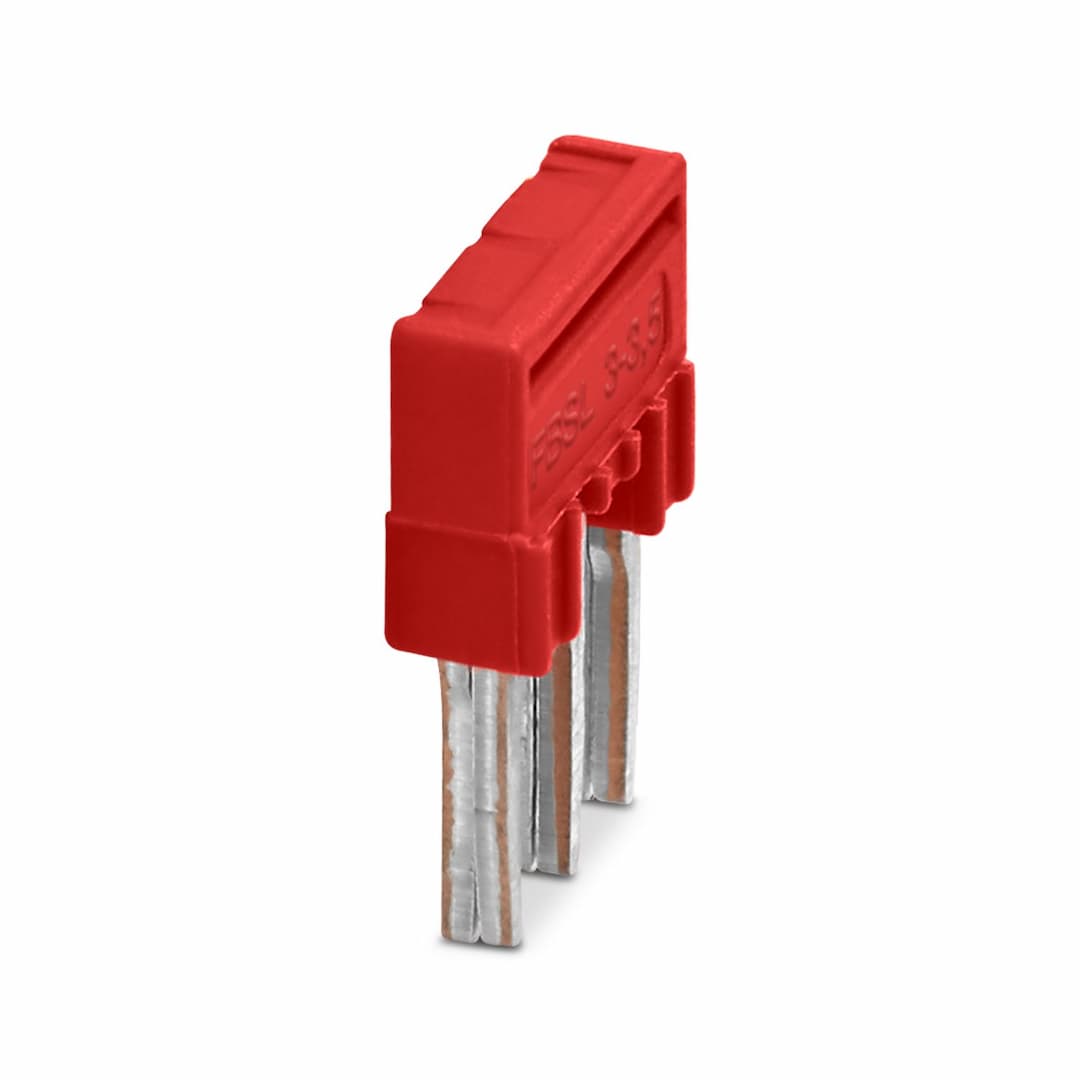

Product Model
FBSL 3-3,5
Selling Points
- 1The FBSL 3-3.5 measures 10.2 mm in width, 13.5 mm in height, and 3.7 mm in length, making it a space-efficient solution for your terminal block connections.
- 2Designed to handle significant electrical loads, this plug-in bridge ensures reliable connections in various modular terminal block systems.
- 3Featuring a plug-in mounting system, the FBSL 3-3.5 is easy to install and requires minimal effort, saving you time and effort.
- 4The red color coding of the plug-in bridge enhances visibility and organization in your electrical setup, reducing errors and improving efficiency.
- 5The FBSL 3-3.5 is compliant with RoHS regulations, ensuring it meets environmental standards and is safe for use in a variety of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 3 |
Article revision | 00 | Maximum load current | The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks. |
Maximum load current | The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks. | Width | 10.2 mm |
Height | 3.7 mm | Depth | 13.5 mm |
Length | 3.7 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
