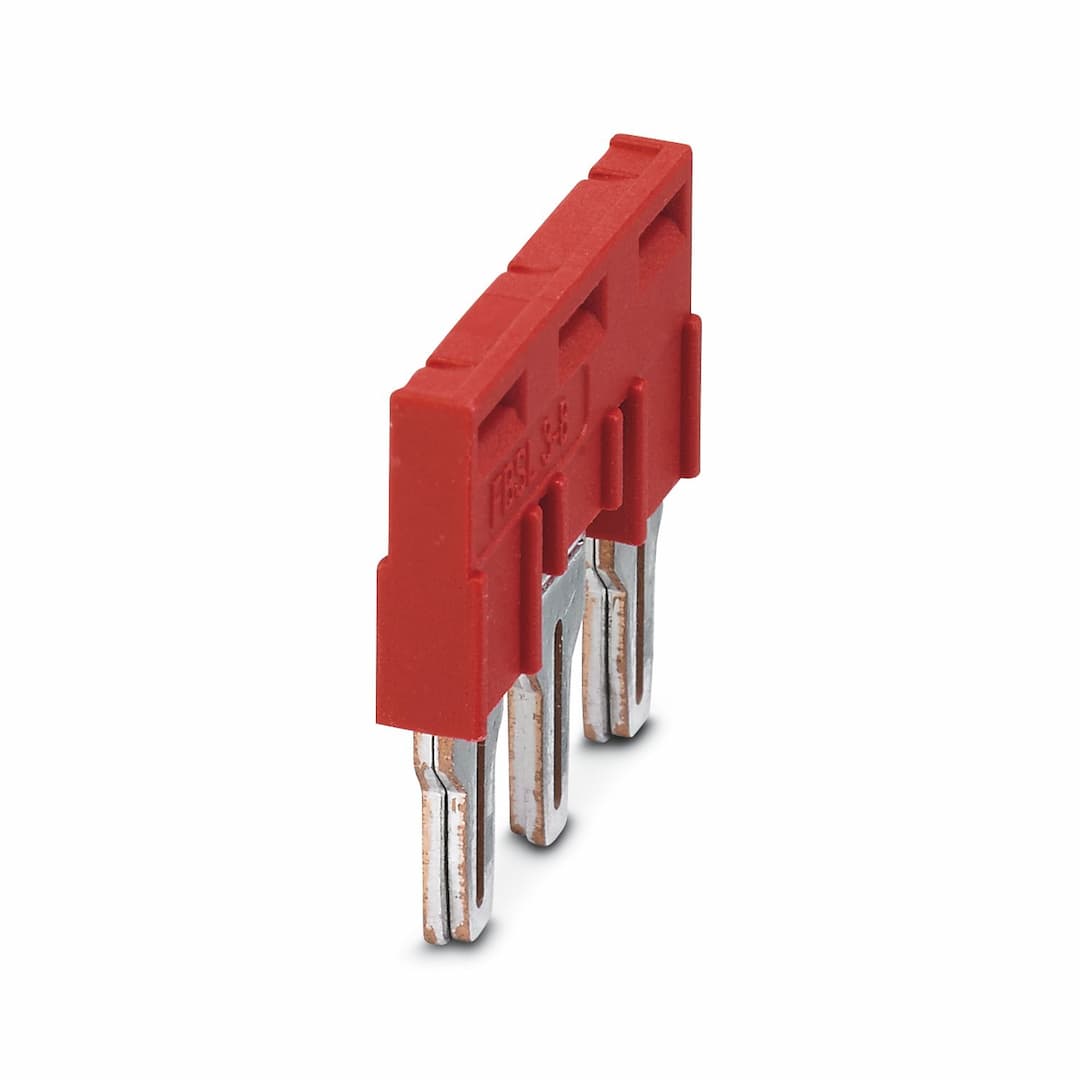

Product Model
FBSL 3-8
Selling Points
- 1Designed for reliable connections in industrial settings.
- 2Compact size makes it perfect for space-constrained applications.
- 3Built to withstand harsh environmental conditions.
- 4Simple and quick installation process ensures minimal downtime.
- 5Suitable for a wide range of electrical applications, including automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 3 |
Pitch | 8.2 mm | Article revision | 00 |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 22.9 mm | Height | 20.38 mm |
Depth | 20.38 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
