Product Model

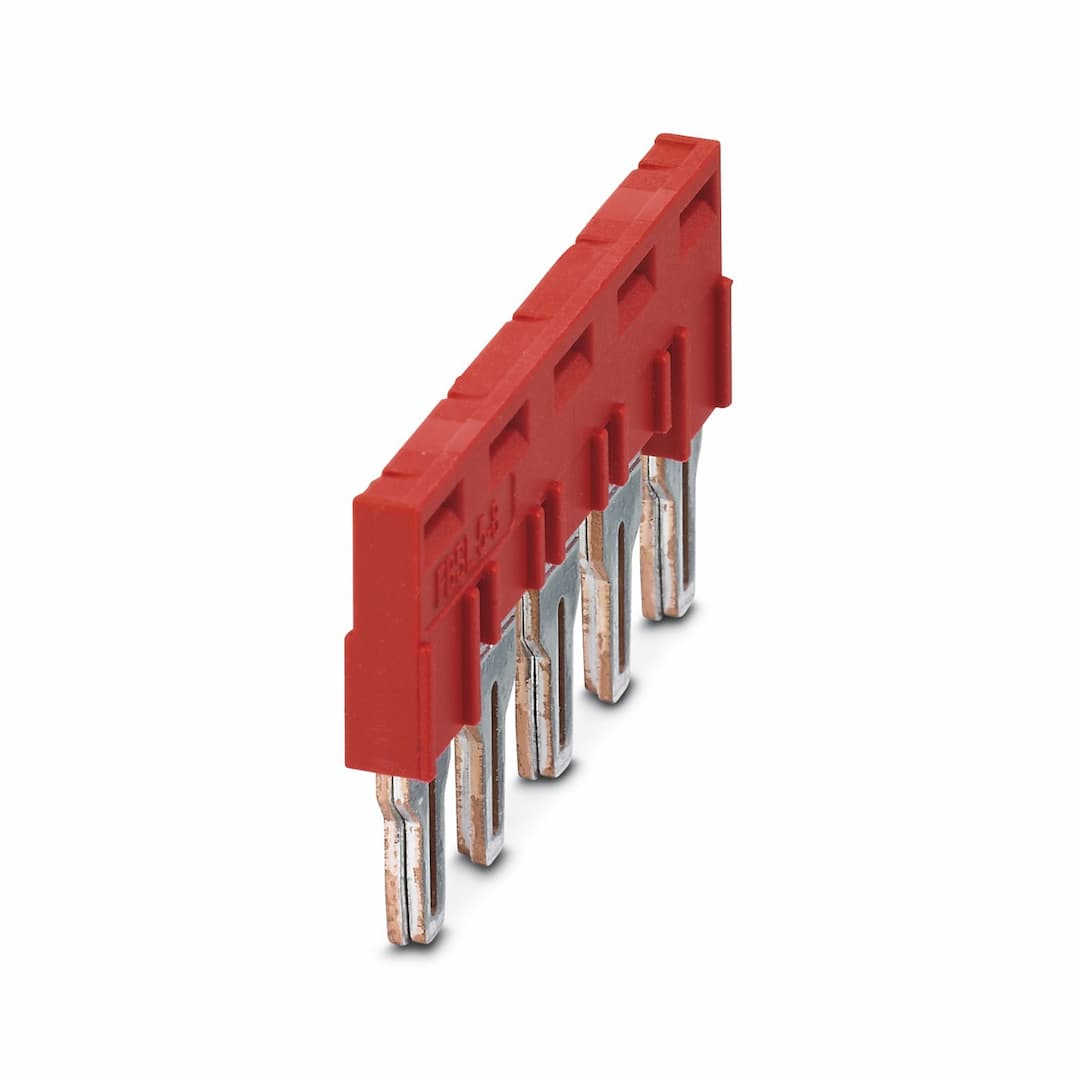

FBSL 5-8
Selling Points
- 1High-Quality Construction: Made from durable copper material with a flammability rating of UL 94 V0.
- 2Versatile Connectivity: Bridges up to 50 terminal blocks in the CLIPLINE system with 2- to 50-position jumpers.
- 3Easy Installation: Plug-in mounting type ensures quick and secure connection.
- 4Environmental Compliance: Meets EU RoHS and China RoHS standards, ensuring environmentally friendly use.
- 5Technical Specifications: 5 positions, 8.2mm pitch, 39.3mm width, and 20.38mm height.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 5 |
Pitch | 8.2 mm | Article revision | 00 |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 39.3 mm | Height | 20.38 mm |
Depth | 20.38 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
