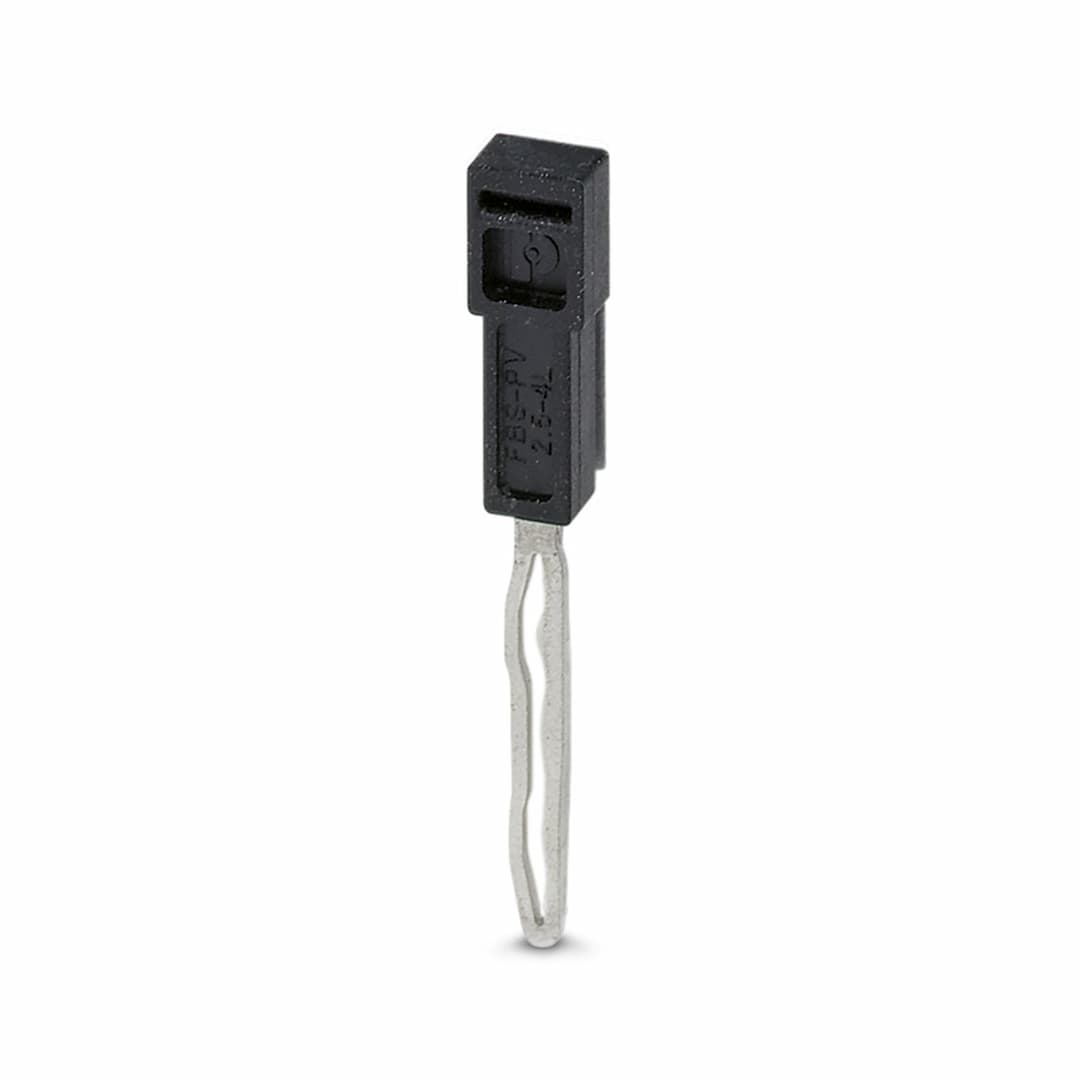

Product Model
FBS-PV PT 2,5-4L
Selling Points
- 1Reliable Connection: Push-in connection ensures secure and easy terminal block connections.
- 2Versatile Design: Suitable for various applications requiring multi-level terminal blocks.
- 3High Voltage Tolerance: Nominal voltage of 500 V for robust electrical connections.
- 4Efficient Cross Section: Rated cross section of 2.5 mm² for optimal current handling.
- 5Durable Construction: Built to last with high-quality materials from Poland.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Item is an accessory for: | Product type | Vertical bridge |
Number of positions | 1 | Article revision | 02 |
Maximum load current | 10 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 10 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 5 mm | Height | 3 mm |
Depth | 30.6 mm | Length | 3 mm |
Color | black (RAL 9005) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
