Product Model

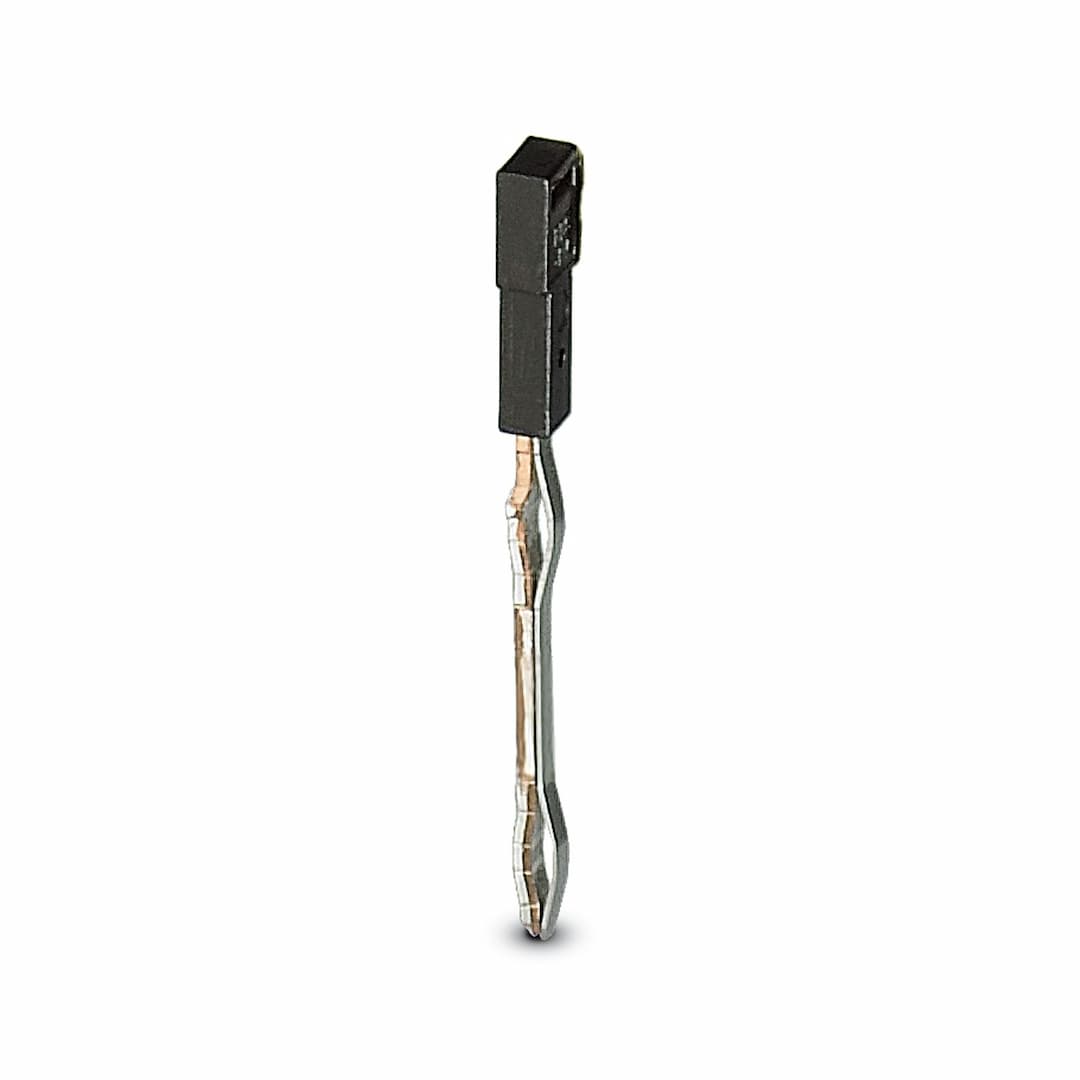

FBS-PV UT
Selling Points
- 1High-Quality Copper Construction: Made from durable copper for excellent conductivity and longevity.
- 2Compact Design: Measuring 3 mm in length, 5.2 mm in width, and 44 mm in height for easy integration.
- 3Maximum Load Current: Supports up to 22 A, ensuring reliable performance in demanding environments.
- 4UL 94 V0 Flammability Rating: Compliant with stringent safety standards for reduced fire risk.
- 5Versatile Mounting Options: Features plug-in mounting for easy installation and versatility in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Vertical bridge | Number of positions | 1 |
Article revision | 03 | Maximum load current | 22 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 22 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Width | 5.2 mm |
Height | 3 mm | Depth | 44 mm |
Length | 3 mm | Color | black (RAL 9005) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
