Product Model

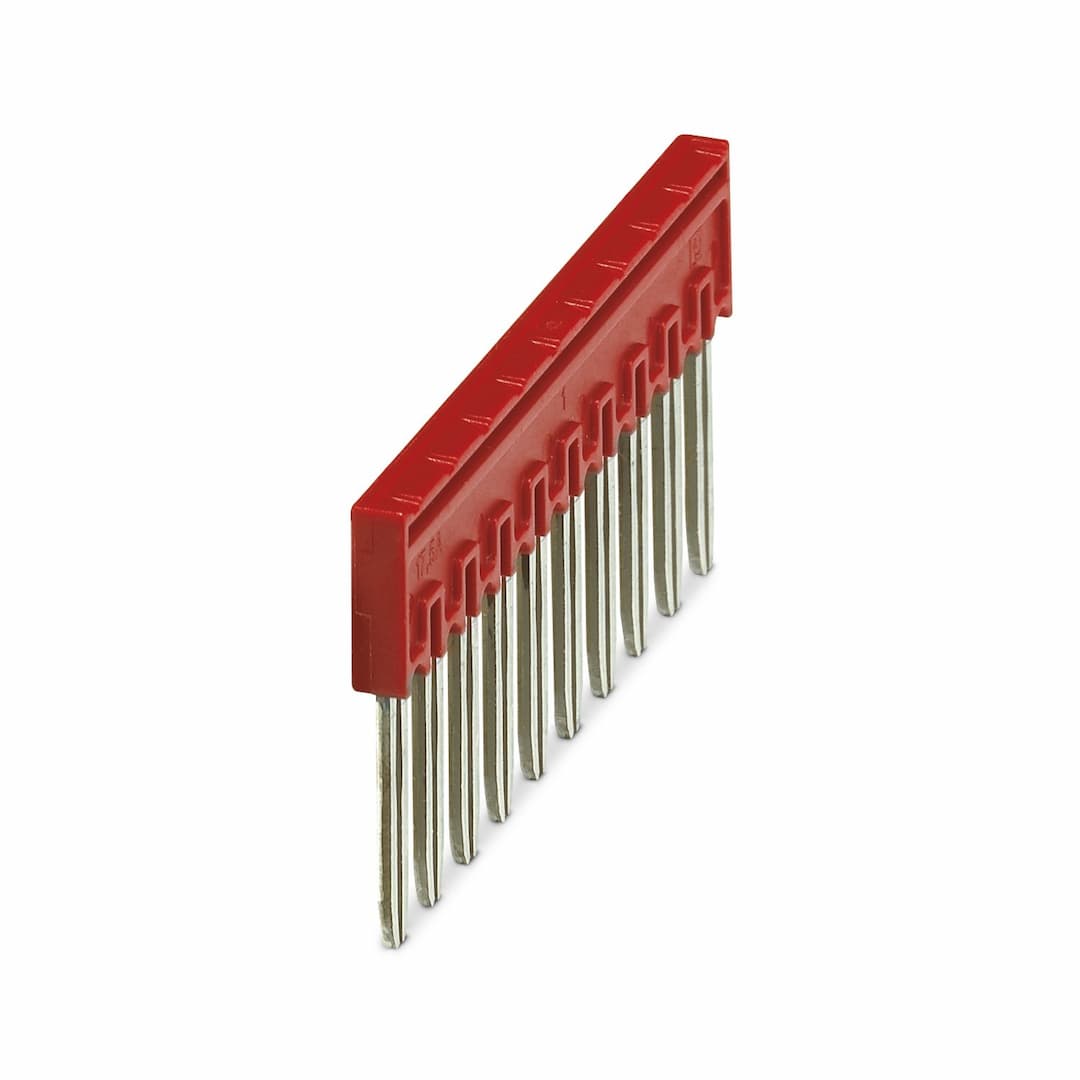

FBSR 10-5
Selling Points
- 1High-quality construction with copper material and red color (RAL 3001).
- 210-pin configuration with a pitch of 5.2 mm for precise connections.
- 3Maximum load current of 17.5 A, suitable for various modular terminal blocks.
- 4Plug-in mounting type for easy installation and flexibility.
- 5Meets EU RoHS and China RoHS substance requirements for environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 10 |
Pitch | 5.2 mm | Article revision | 02 |
Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 5.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
