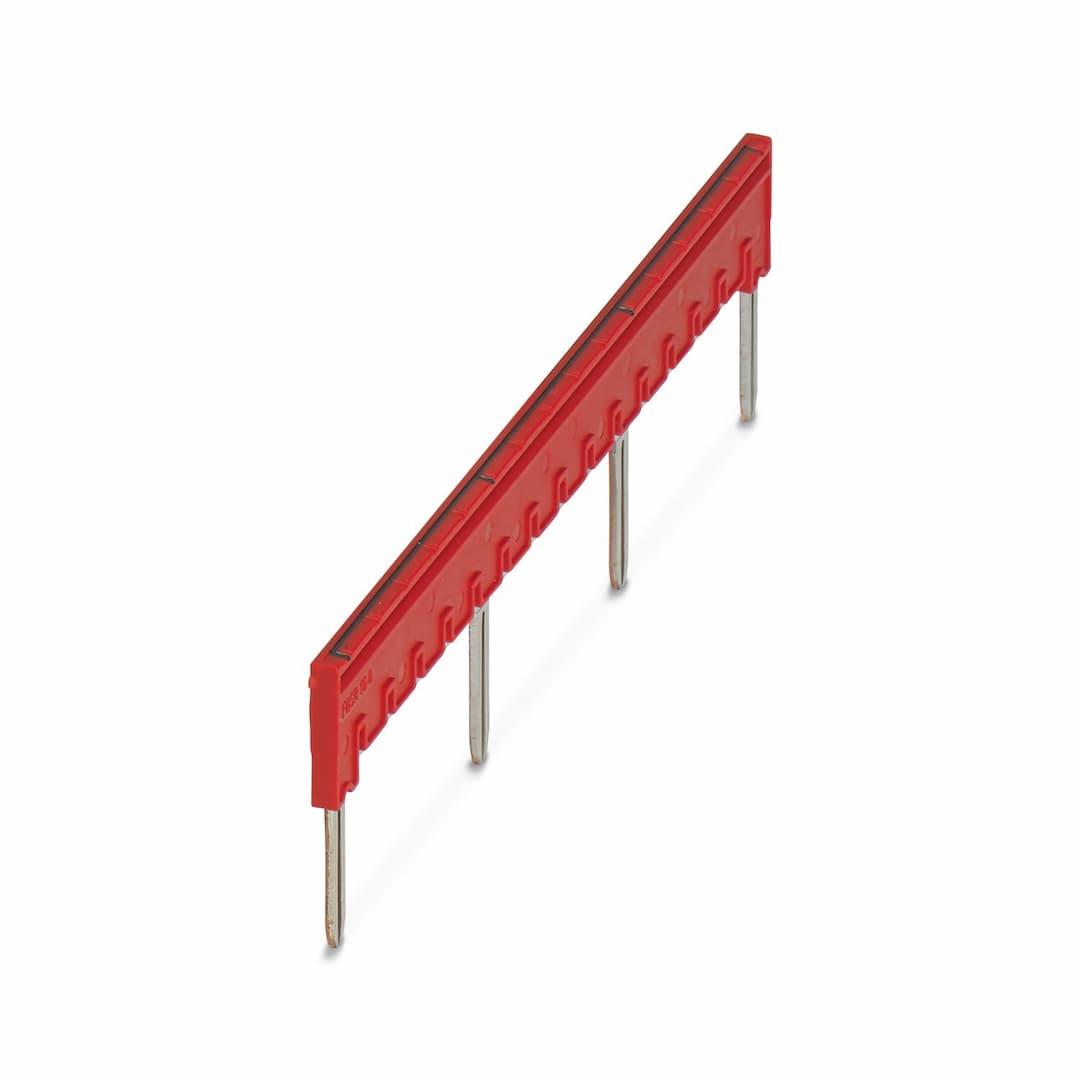

Product Model
FBSR 1/6/11/16-8
Selling Points
- 1High-Quality Construction: Made from durable copper material with a flammability rating of V0.
- 2Reliable Electrical Connections: Supports up to 32 A maximum load current for robust performance.
- 3Compact Design: Measures 129.5 mm in width, 30 mm in height, and 30 mm in depth.
- 4Easy Installation: Features plug-in mounting for quick and secure setup.
- 5Technical Precision: Includes pin assignment for positions 1, 6, 11, and 16.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 16 |
Pitch | 8.2 mm | Article revision | 02 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 129.5 mm | Height | 30 mm |
Depth | 30 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Pin assignment | 1, 6, 11, 16 | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
