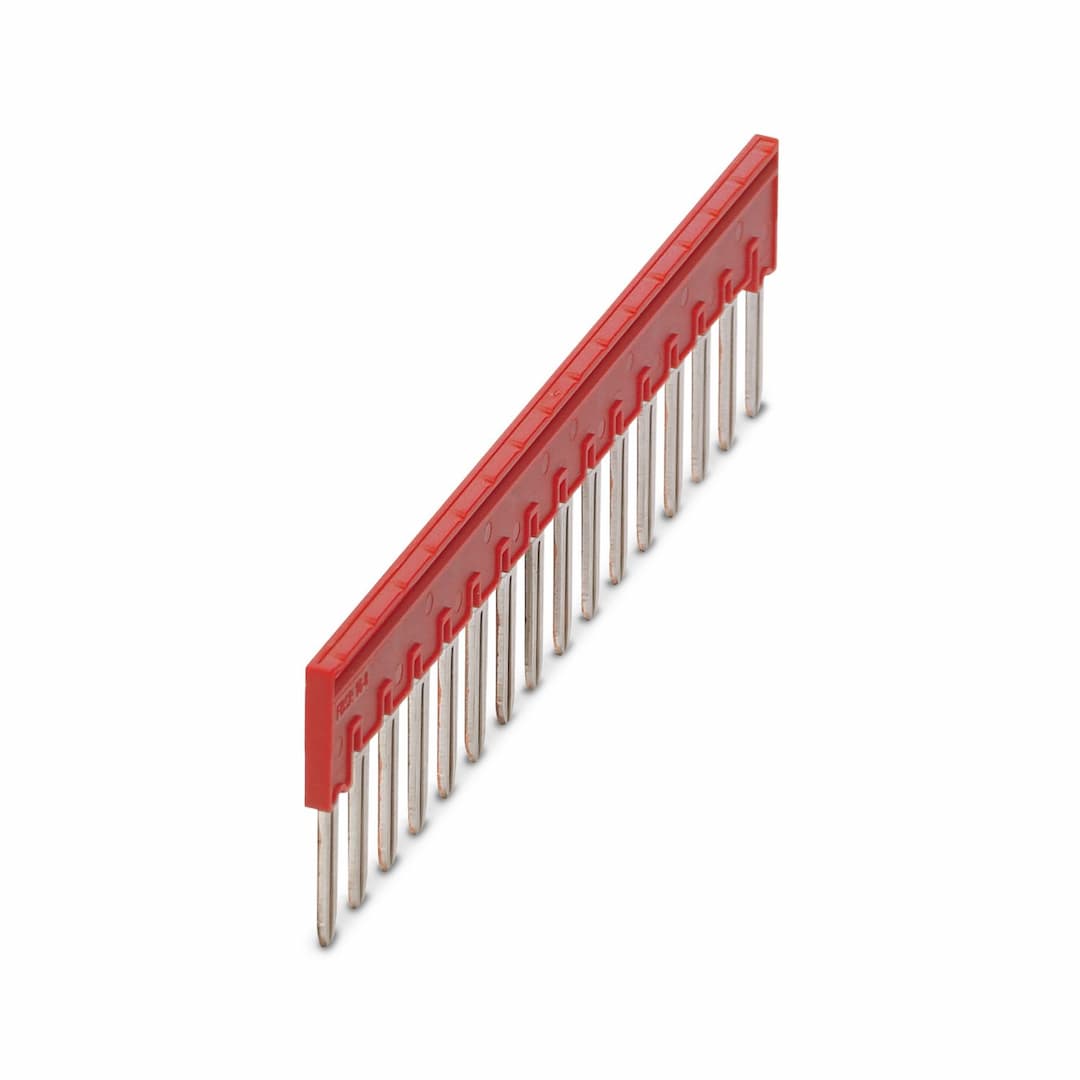

Product Model
FBSR 16-8
Selling Points
- 1Accommodates multiple jumper bars for versatile connectivity.
- 2Ensures precise and reliable connections.
- 3Long-lasting and easy to identify in any environment.
- 4Supports up to 32 A, suitable for demanding applications.
- 5Simple and efficient setup with standard tools.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 16 |
Pitch | 8.2 mm | Article revision | 02 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 129.5 mm | Height | 30 mm |
Depth | 30 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
