Product Model

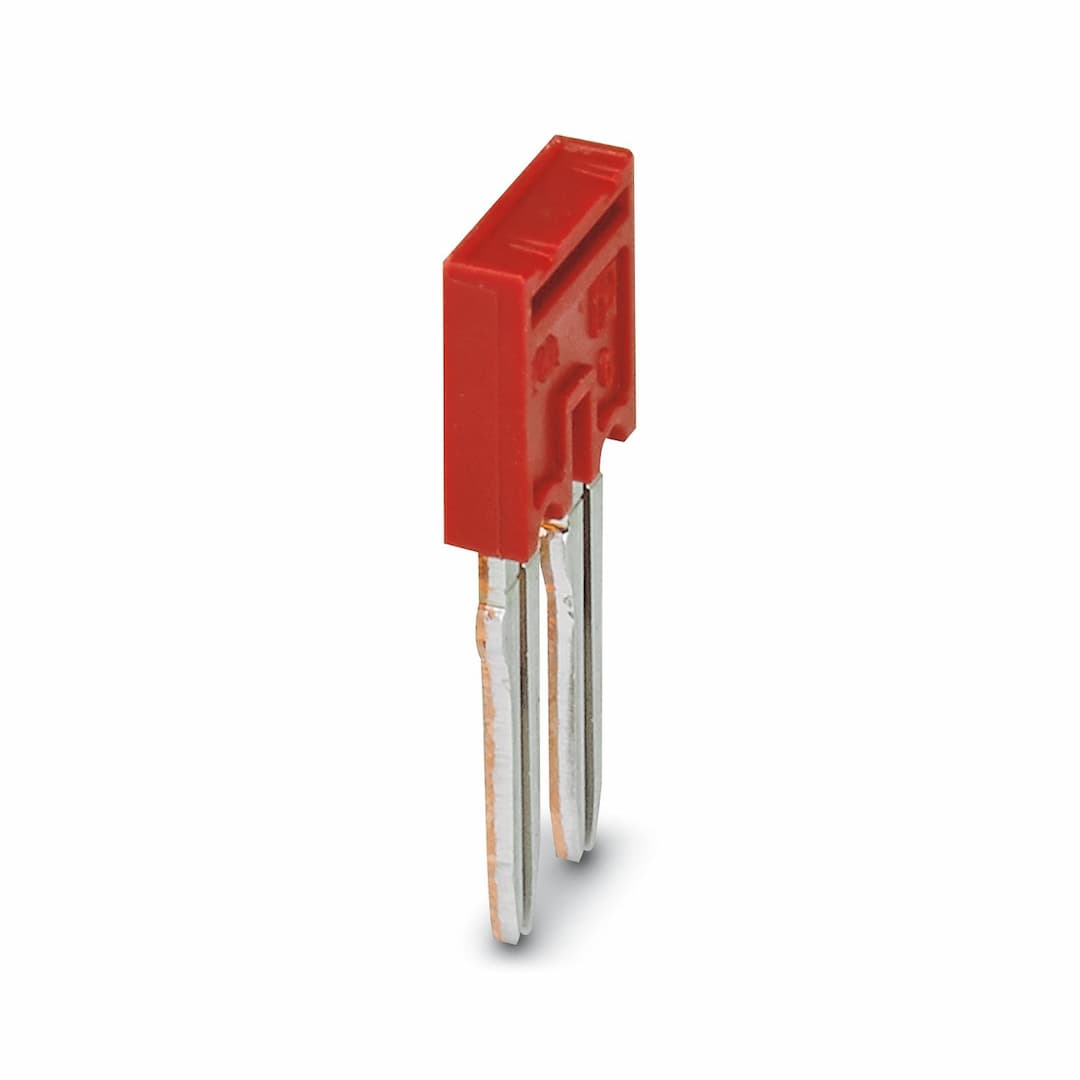

FBSR 2-6
Selling Points
- 1The FBSR 2-6 features a compact design with a pitch of 6.2 mm, making it perfect for confined spaces.
- 2Available in red color, this terminal block is easily identifiable and stands out in any electrical setup.
- 3Designed for cross connections, the FBSR 2-6 ensures secure and reliable electrical connections.
- 4With a nominal current of 24A, this terminal block can handle high current applications.
- 5Featuring plug-in connections, the FBSR 2-6 offers tool-free wiring and easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 6.2 mm | Article revision | 02 |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 6.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
