Product Model

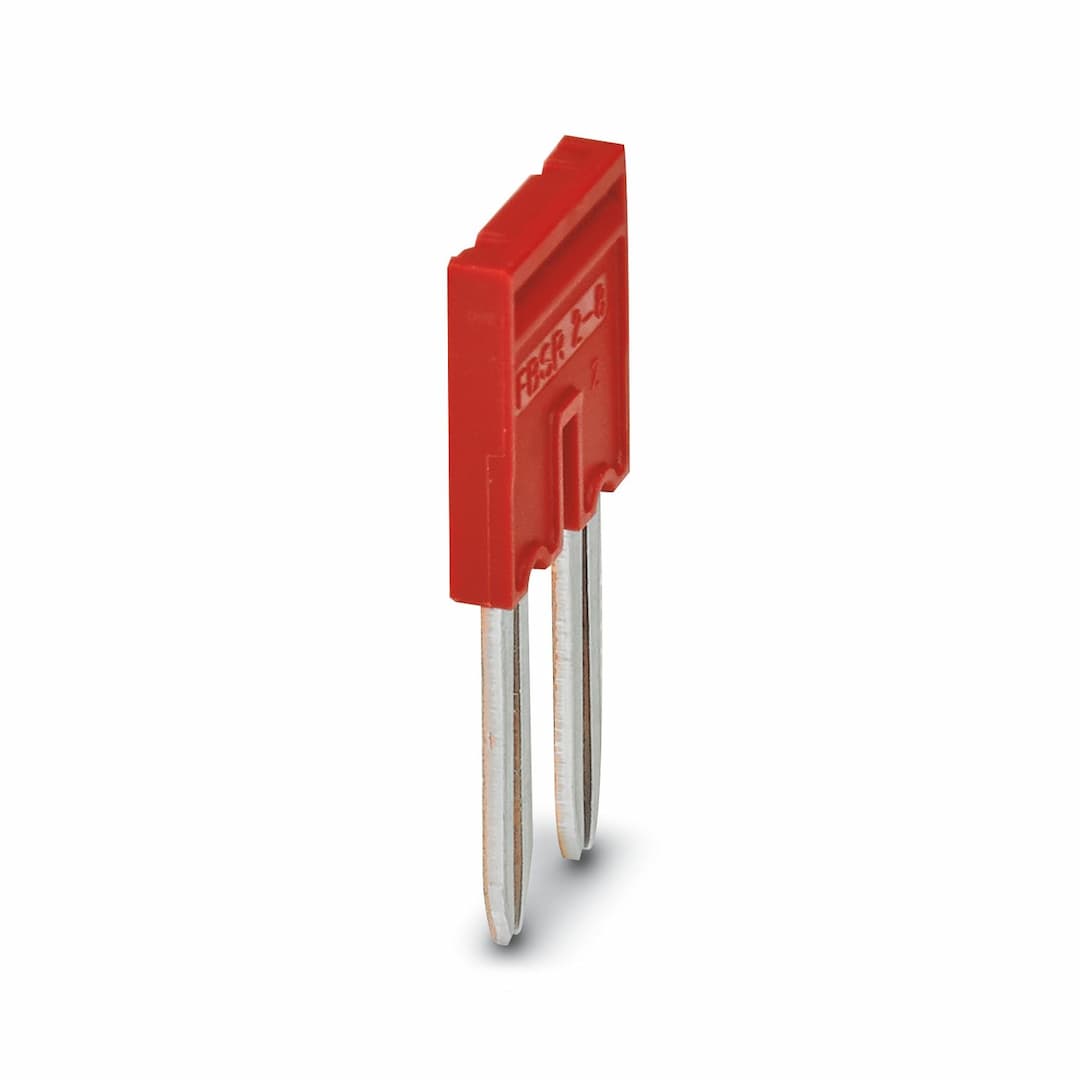

FBSR 2-8
Selling Points
- 1High current capacity with a maximum load current of 32A.
- 2Compact design with a pitch of 8.2mm.
- 3Red color for easy identification in modular terminal blocks.
- 4Made to Order (non-returnable) for custom needs.
- 5Compatible with various modular terminal blocks for versatile use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 8.2 mm | Article revision | 02 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 14.8 mm | Height | 30 mm |
Depth | 30 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
