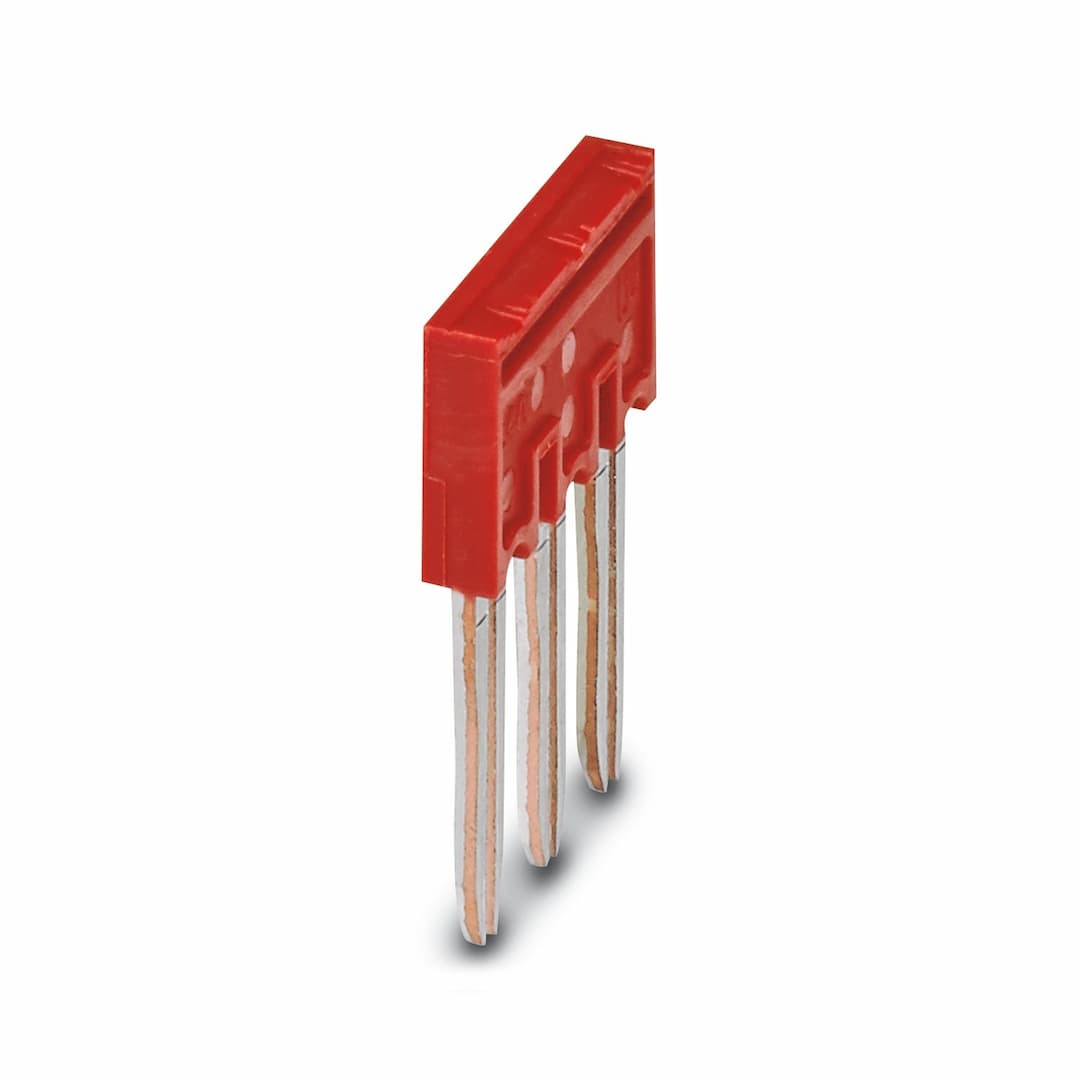

Product Model
FBSR 3-6
Selling Points
- 1High current capacity up to 24A.
- 2Compact design with 6.2mm pitch.
- 3Red color for easy identification.
- 4Plug-in mounting for easy installation.
- 5Compatible with various modular terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 3 |
Pitch | 6.2 mm | Article revision | 02 |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 6.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
