Product Model

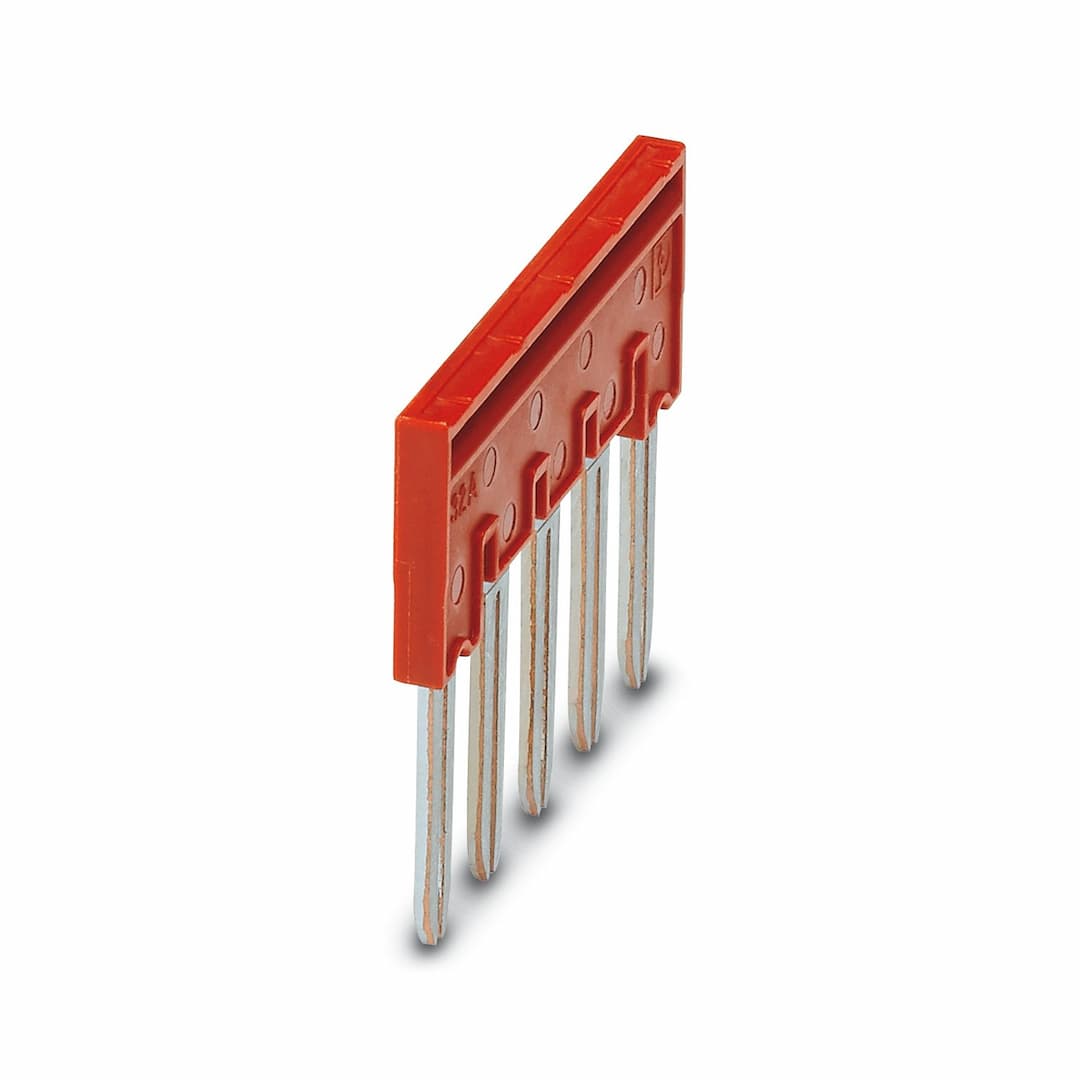

FBSR 5-8
Selling Points
- 1High-Quality Connectivity Solution: The Phoenix Contact FBSR 5-8 plug-in bridge ensures reliable and efficient connections with its robust design.
- 2Compact Design: With a width of 39.3 mm, height of 30 mm, and depth of 30 mm, it fits perfectly into various electrical systems.
- 3Red Color and Copper Material: The red color and copper material make it easy to identify and ensure high electrical conductivity.
- 432 A Maximum Load Current: Supports up to 32 A of maximum load current, suitable for demanding applications.
- 5Easy Plug-in Mounting: Features plug-in mounting for quick and secure installation into modular terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 5 |
Pitch | 8.2 mm | Article revision | 02 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 39.3 mm | Height | 30 mm |
Depth | 30 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
