Product Model

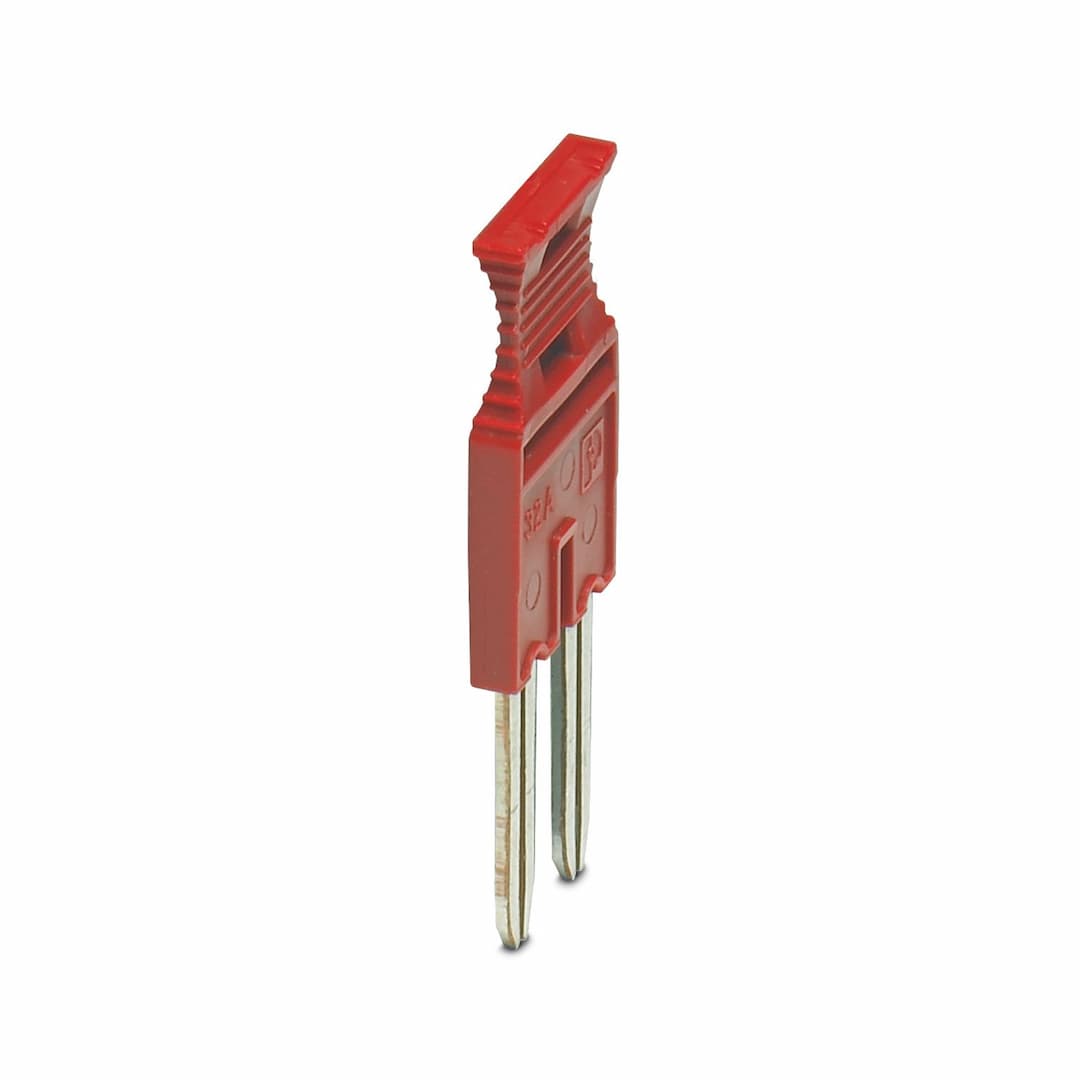

FBSRH 2-6
Selling Points
- 1The FBSRH 2-6 features a molded extraction tool for convenient and tool-free bridging.
- 2Rated for a maximum load current of 24 A, suitable for various electrical applications.
- 3Integral markers at the bottom ensure easy identification of the connected conductors.
- 4Meets China RoHS standards and has unlimited environmentally friendly use period (EFUP-e).
- 5Constructed with a reinforced plastic UL94V-2 housing for secure and reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Short-circuit connector | Number of positions | 2 |
Pitch | 6.2 mm | Article revision | 02 |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 6.2 mm | Color | red (RAL 3001) |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
