Product Model

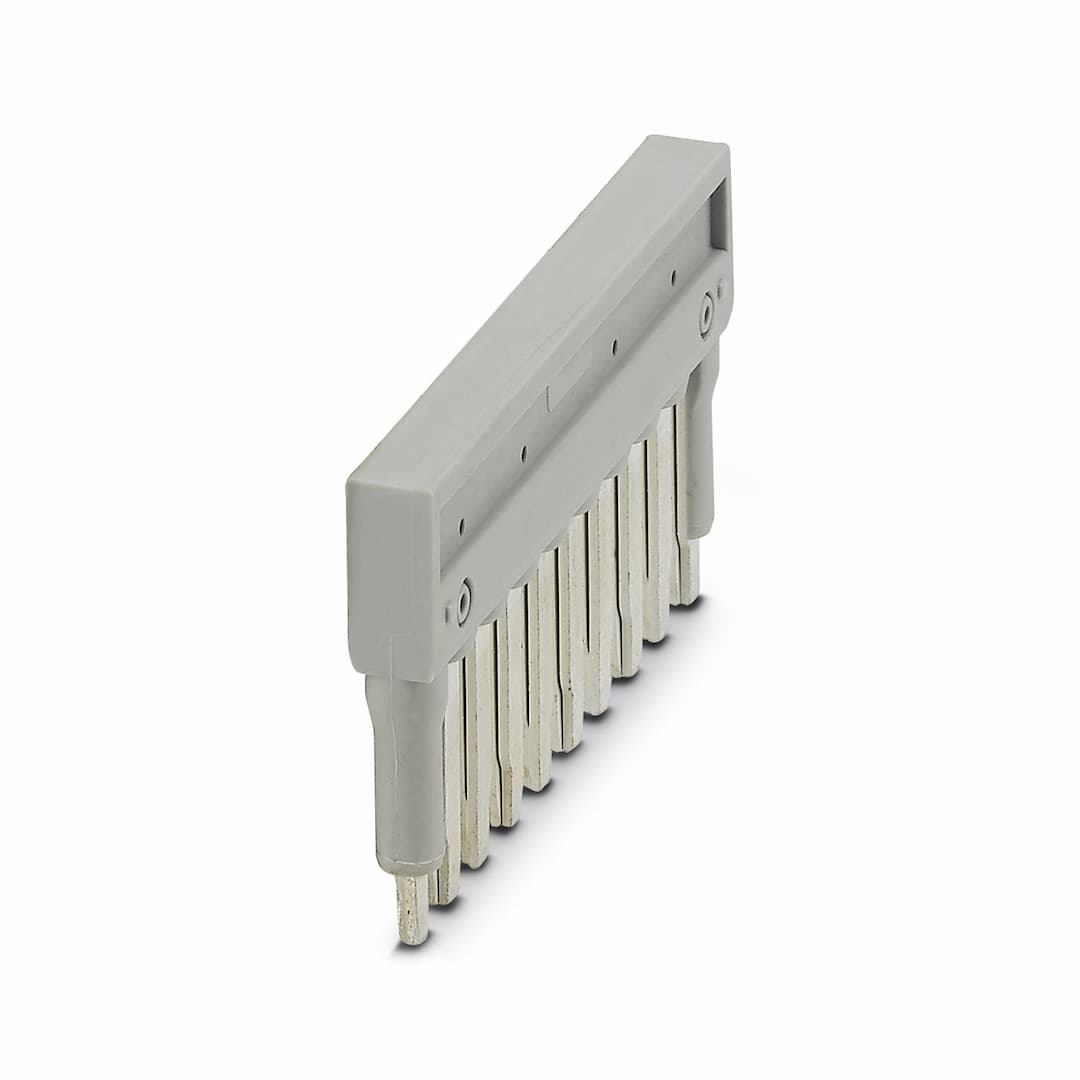

FBST 10-5
Selling Points
- 110 Positions: Ideal for various electrical applications with 10 positions for secure connections.
- 25.2 mm Pitch: Compact design with a 5.2 mm pitch for efficient use in tight spaces.
- 3Robust Copper Construction: Built with durable copper material for high conductivity and reliability.
- 4Gray Color: Easy identification with a gray color that stands out in any electrical setup.
- 5V0 Flammability Rating: Meets stringent safety standards with a V0 flammability rating according to UL 94.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 10 |
Pitch | 5.2 mm | Article revision | 03 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 5.2 mm | Color | gray (RAL 7042) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 105 °C |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
