Product Model

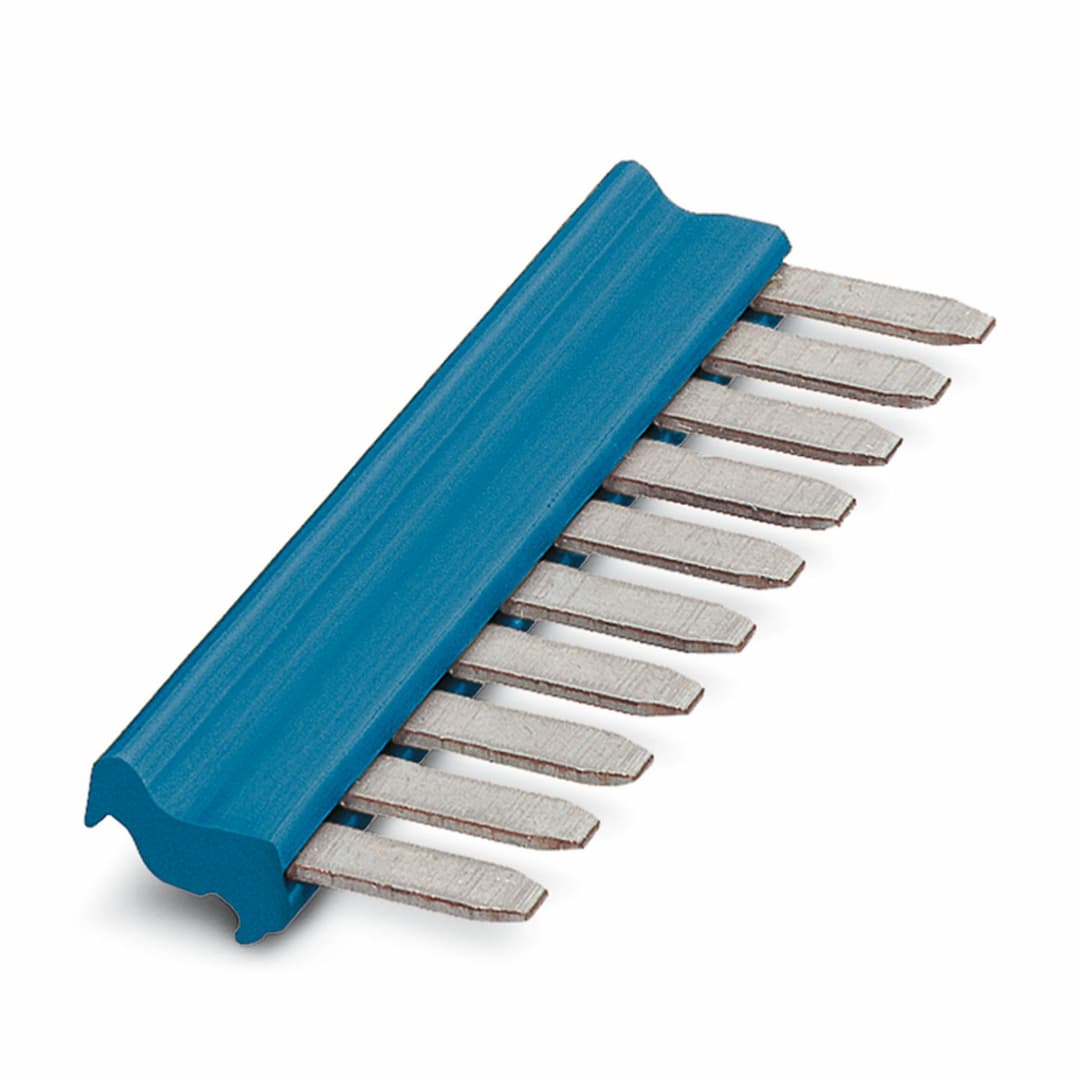

FBSTB 10-ZDIK BU
Selling Points
- 1High-Quality Copper Construction: Made from durable copper for excellent electrical conductivity.
- 210 Positions: Ideal for complex circuit configurations with 10 individual connections.
- 35.2 mm Pitch: Compact design with 5.2 mm pitch for efficient terminal block usage.
- 4Blue Color: Visually distinct blue color for easy identification in your setup.
- 532 A Maximum Load Current: Supports high current applications with a maximum load of 32 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 10 |
Pitch | 5.2 mm | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Pitch | 5.2 mm |
Color | blue | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
