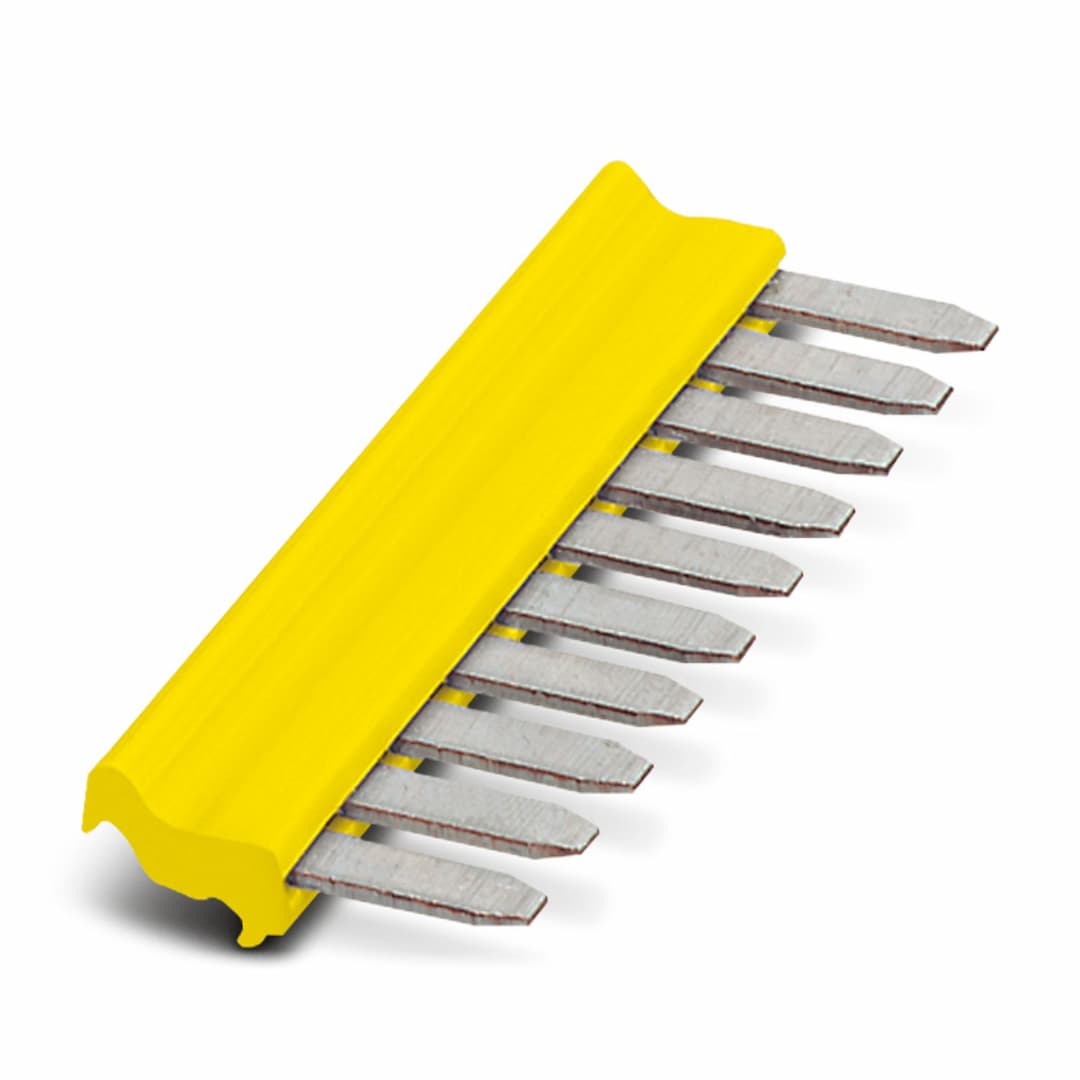

Product Model
FBSTB 10-ZDIK GNYE
Selling Points
- 1High Current Capacity: Supports up to 32 A of maximum load current.
- 2Easy Installation: Plug-in mounting for quick and secure connection.
- 3Durable Material: Made from copper with a flammability rating of V0 according to UL 94.
- 4Versatile Color Options: Available in green-yellow color for easy identification.
- 5Compact Design: 5.2 mm pitch for efficient use in modular terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 10 |
Pitch | 5.2 mm | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Pitch | 5.2 mm |
Color | green-yellow | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
