Product Model

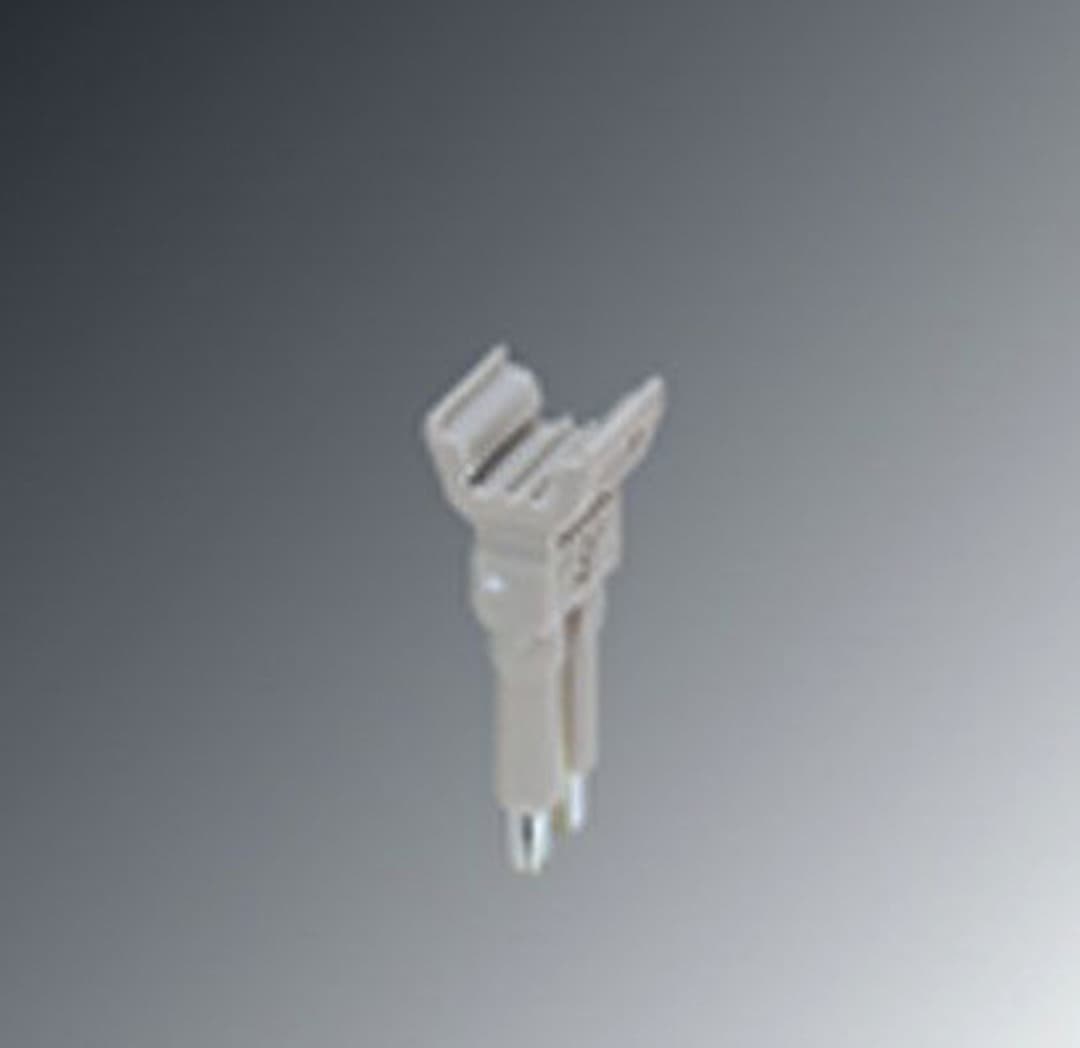

FBSTB 2-5
Selling Points
- 1High-Current Capability: Supports up to 32A load current for robust electrical connections.
- 2Durable Construction: Made from high-quality copper material with a flammability rating of UL 94 V0.
- 3Compact Design: Pitch of 5.2 mm and dimensions of 22.7 mm length, 3 mm height, and 9 mm width.
- 4Environmental Compliance: Environmentally friendly with no hazardous substances above threshold values, compliant with China RoHS.
- 5Versatile Mounting: Easy plug-in mounting suitable for various ambient temperatures (-60°C to 105°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 2 |
Pitch | 5.2 mm | Article revision | 04 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 5.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Ambient temperature (operation) | -60 °C ... 105 °C |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
