Product Model

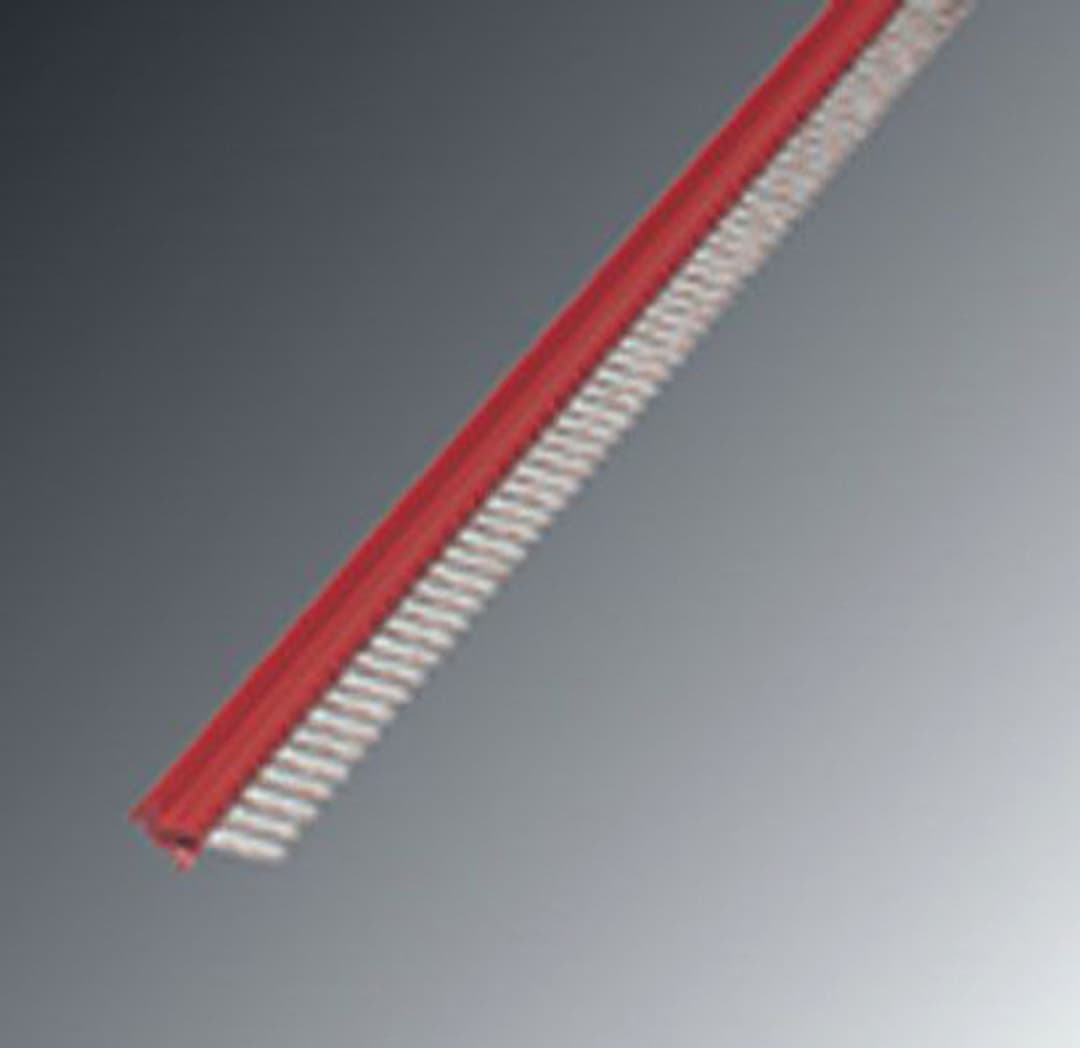

FBSTB 80-ZDIK RD
Selling Points
- 1High-Quality Construction: Built with durable materials for long-lasting performance.
- 280 Positions: Accommodates multiple connections in a single bridge.
- 35.2 mm Pitch: Compact design for efficient wiring and space-saving.
- 4Red Color: Easy identification in complex electrical systems.
- 5Unlimited Environmental Use Period: Environmentally friendly with no hazardous substances above threshold values.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 80 |
Pitch | 5.2 mm | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Pitch | 5.2 mm |
Color | red | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
