Product Model

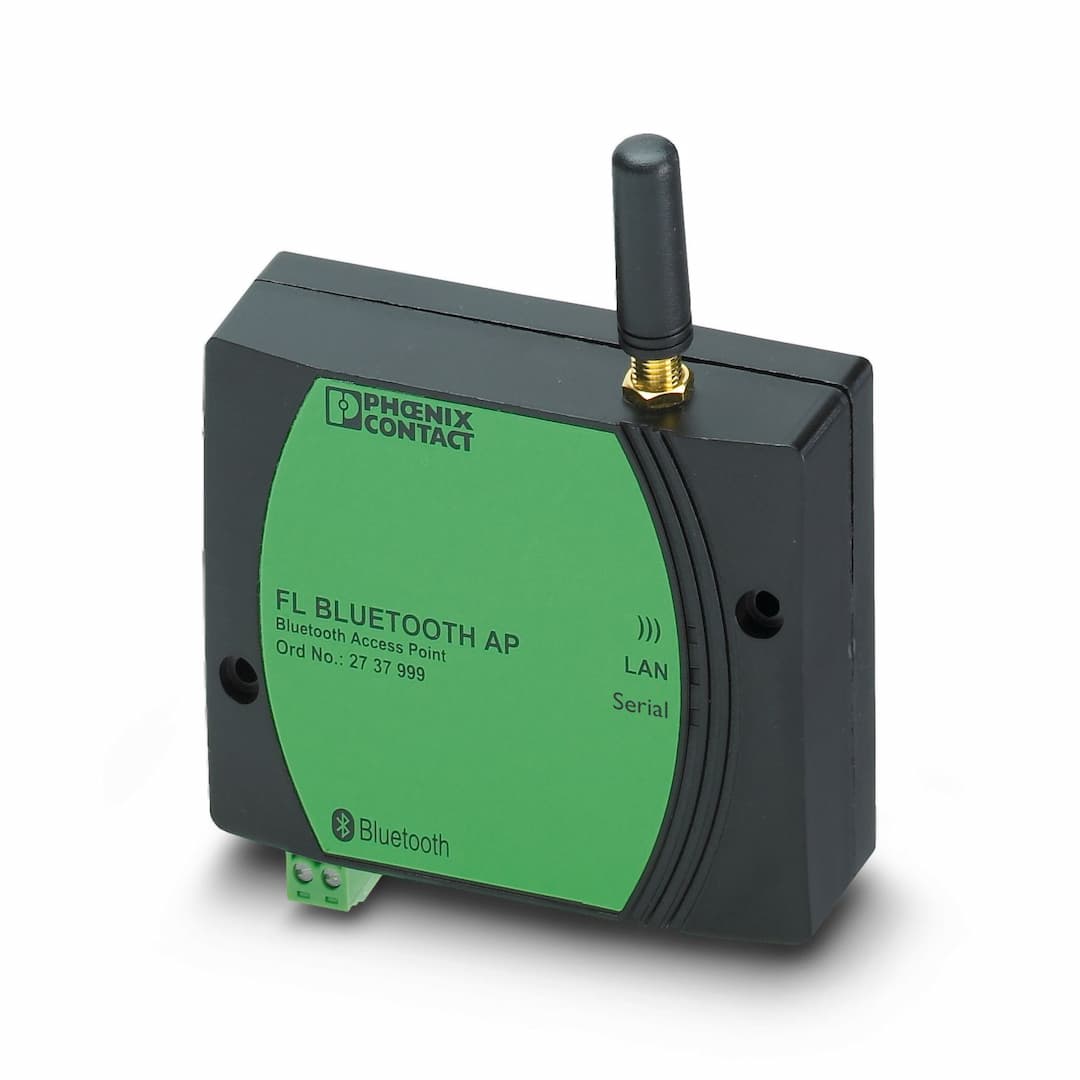

FL BLUETOOTH AP
Selling Points
- 1Wireless Connectivity: Bluetooth 2.0 with a 2.4 GHz frequency band.
- 2Robust Security: 128-bit data encryption, MAC filter, authentication, and PIN protection.
- 3Long-Range Operation: Up to 200 m range for seamless connectivity.
- 4Protocol-Transparent Communication: Layer 2 protocol-transparent communication for smooth data transfer.
- 5Versatile Operating Modes: Access point, Ethernet client adapter, and COM server modes for flexible use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Type | Stand-Alone |
Number | 1 | Type | Bluetooth 2.4 GHz up to 1 Mbps |
Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 4.8 W |
Connection method | Via COMBICON | Supply voltage | 24 V DC |
Supply voltage range | 9 V DC ... 30 V DC | Supply current | 200 mA |
Current consumption | 200 mA (at 24 V DC) | Interface | Ethernet |
Number | 1 | Connection method | RJ45 jack |
Number | 1 | Connection method | SMA (male) |
Operating modes | Access point / Ethernet client adapter / (COM server) | Configuration | Web-based management |
Automatic channel selection | FHSS, AFH | Security | 128-bit data encryption
MAC filter
Authentication
PIN
Non-discoverable |
Wireless licenses | Europe, additional countries in the e-shop | Country support | Australia (Special rule: Please contact the Product Manager)
Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Israel
Italy
Canada
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Russia (Special rule: Please contact the Product Manager)
Sweden
Switzerland
Singapore
Slovakia
Slovenia
Spain
Czech Republic
Turkey
Hungary
USA
Cyprus (rep.) |
Connection method | D-SUB 9 plug | Protocols supported | RS-232 |
Designation | Bluetooth | Antenna connection method | SMA (female) |
Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) | Frequency band | 2.4 GHz |
Wireless standard | Bluetooth 2.0 | Transmission power | max. 14 dBm (with automatic control) |
Number of wireless interfaces | 1 | Wireless modules that can be connected | 7 |
Profiles supported | LAP, PAN, SPP | Width | 80 mm |
Height | 65 mm | Depth | 25 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -30 °C ... 65 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 90 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting, optional DIN rail mounting
Wall mounting |
Assembly note | External OMNI antenna, antennas can be exchanged |
Specifications may be subject to change without notice
