Product Model
FL BT EPA 2
Selling Points

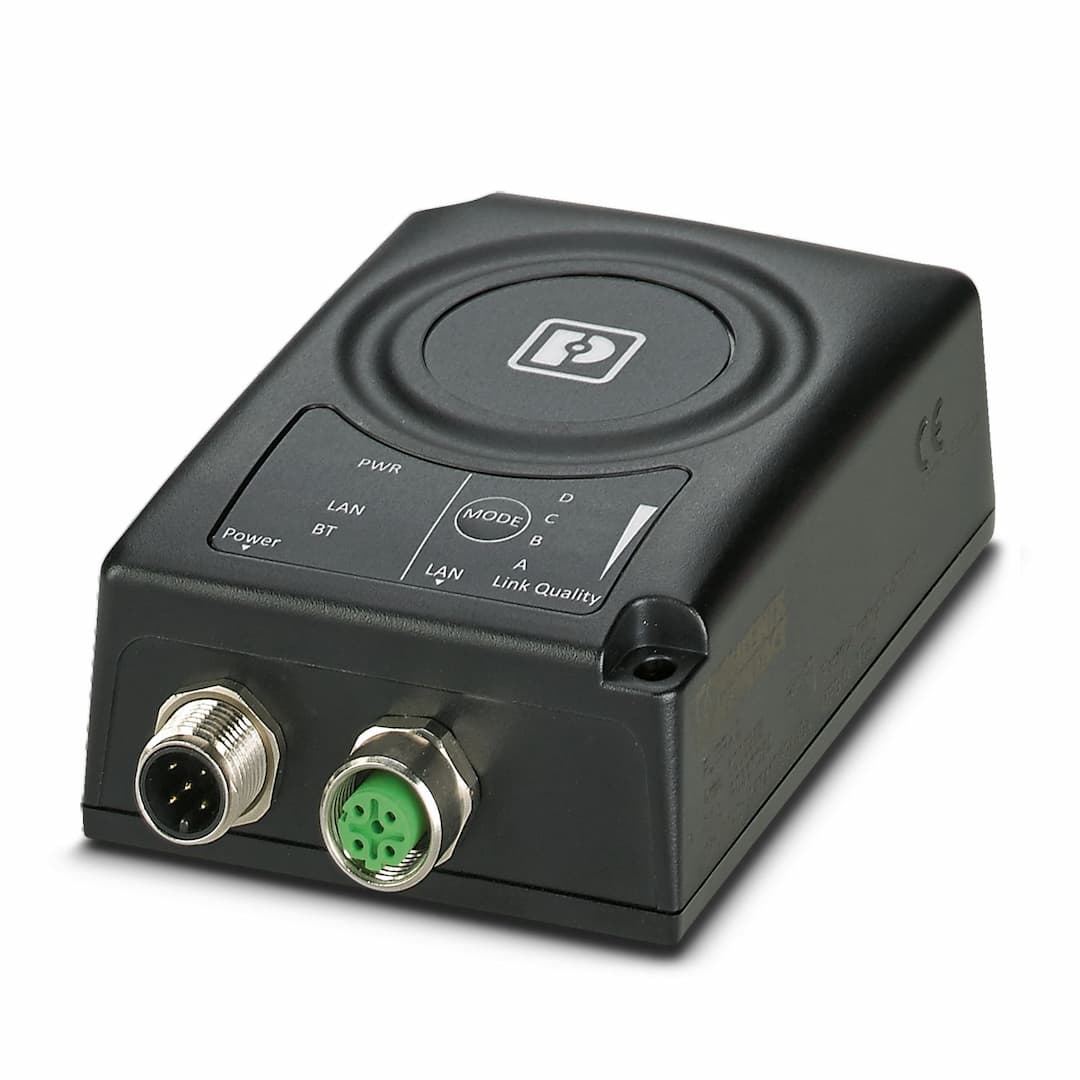

- 1The FL BT EPA 2 features a compact IP65 module with an integrated antenna, ideal for harsh industrial environments.
- 2Easily connect to automation devices via M12 Ethernet and power connections, ensuring straightforward integration.
- 3Supports Bluetooth 2.1+EDR and Bluetooth LE 4.0, enabling fault-free parallel operation with other WLAN systems.
- 4Configure quickly using the MODE button or web browser, ensuring secure point-to-point and small network setups.
- 5Suitable for various industrial applications, including wastewater treatment plants, crane control systems, and machines in motion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Wireless module |
Application | Ethernet | Type | Stand-Alone |
Article revision | 04 | Number | 1 |
Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 1.7 W |
Connection technology | M12 connector | Connection method | M12 connector (A-coded, male) |
Supply voltage | 24 V DC | Supply voltage range | 9 V DC ... 30 V DC |
Supply current | typ. 36 mA (at 24 V DC) | Current consumption | max. 190 mA (at 9 V DC) |
Number of inputs | 1 | Connection method | M12 connector (A-coded, male) |
Interface | Ethernet | Number | 1 |
Connection method | M12 connectors (D-coded, female) | Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC |
Security | PIN
Non-discoverable | Wireless licenses | Europe, USA, Canada, additional countries in the e-shop
RED (Radio Equipment Directive)
FCC 47 CFR part 15, subpart B |
Country support | Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Canada
Croatia
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Sweden
Switzerland
Slovakia
Slovenia
Spain
Czech Republic
Hungary
USA
Cyprus (rep.)
Japan
Cyprus (rep.) | Number of interfaces | 1 |
Connection method | M12 connectors (D-coded, female) | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Copper |
Transmission length | 100 m (per segment) | Designation | Bluetooth |
Antenna connection method | (Internal) | Frequency range | 2.402 GHz ... 2.48 GHz (Bluetooth) |
Frequency band | 2.4 GHz | Wireless standard | Bluetooth 2.1 + EDR |
Transmission power | max. 10 dBm | Number of wireless interfaces | 1 Bluetooth 2.1+EDR, Bluetooth LE 4.0 |
Wireless modules that can be connected | 1 | Profiles supported | PAN (NAP, PANU)
GATT (central) |
Width | 67.8 mm | Height | 92.7 mm |
Depth | 33.2 mm | Note on dimensions | Without M12 connections |
Degree of protection | IP65 | Ambient temperature (operation) | -40 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 93 % (non-condensing) |
Permissible humidity (storage/transport) | non-condensing | Standards/regulations | EN 61000-4-2 |
Standards/regulations | EN 61000-4-3 | Standards/regulations | EN 61000-4-4 |
Standards/regulations | EN 61000-4-5 | Standards/regulations | EN 61000-4-6 |
Standards/regulations | EN 55022 | Mounting type | Wall mounting |
Assembly note | Internal antenna |
Specifications may be subject to change without notice
